8457 0601000

Active

Belden Inc.

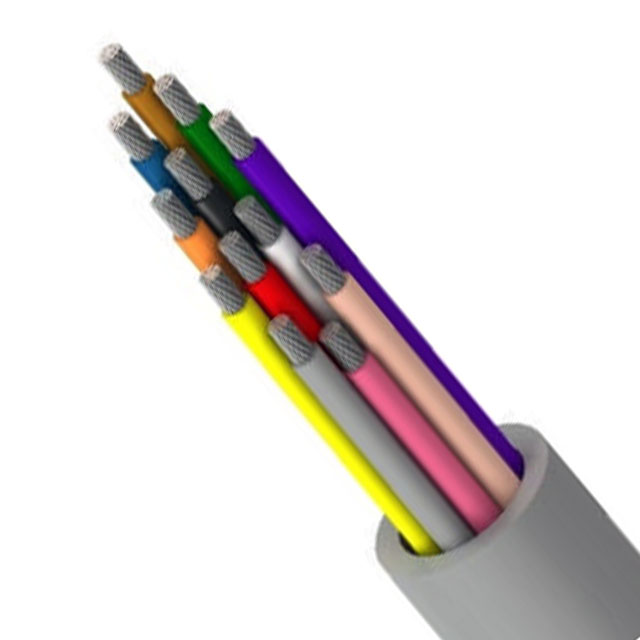

CABLE 12COND 22AWG CHROMEE

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 12COND 22AWG CHROMEE

Technical Specifications

Parameters and characteristics for this part

Specification	8457 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.272 in
Jacket (Insulation) Diameter [diameter]	6.91 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2576
Usage	Audio, Instrumentation, Control
Wire Gauge	22 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Ratings	Jacket (Insulation) Material	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Conductor Insulation	Jacket Color	Length	Length	Usage	Length [x]	Length [x]
Belden Inc. 8457 0601000	-20 C	80 C	22 AWG	0.272 in	6.91 mm	Copper Tinned	UL Style 2576	Poly-Vinyl Chloride (PVC)	Multi-Conductor	7	30 AWG	12	Poly-Vinyl Chloride (PVC)	Chrome	1000 ft	304.8 m	Audio Control Instrumentation
Belden Inc. 8457 060500	-20 C	80 C	22 AWG	0.272 in	6.91 mm	Copper Tinned	UL Style 2576	Poly-Vinyl Chloride (PVC)	Multi-Conductor	7	30 AWG	12	Poly-Vinyl Chloride (PVC)	Chrome			Audio Control Instrumentation	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Conductor Multi-Conductor Cable Chrome 22 AWG 1000.0' (304.8m)
