MOT-I-81542-A
ActiveISL Products International

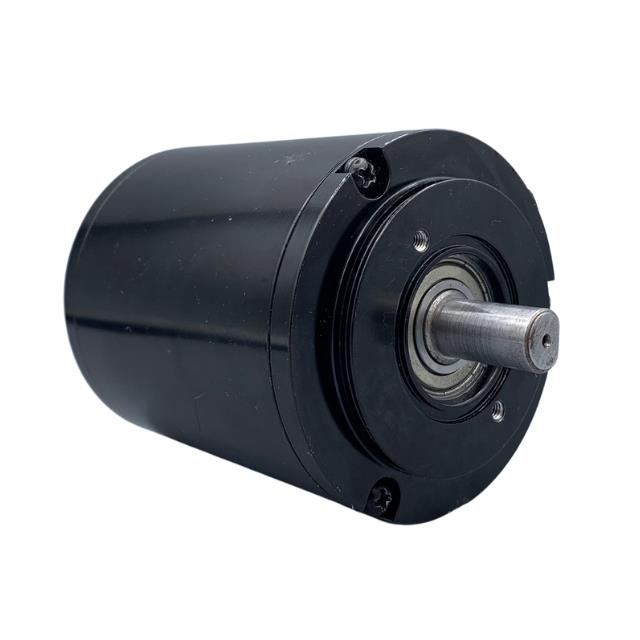

86MM BLDC BRUSHLESS MOTOR
MOT-I-81542-A
ActiveISL Products International
86MM BLDC BRUSHLESS MOTOR
Description
General part information
MOT-I-81542-A
Brushless (BLDC) DC Motor 6100 RPM 361W 24VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | MOT-I-81542-A |
|---|---|
| Diameter - Shaft | 0.472 in |
| Length - Shaft and Bearing | 4.803 in |
| Motor Type | Brushless (BLDC) |
| Mounting Hole Spacing | 1.693 in |
| Power - Rated | 361 W |
| RPM | 6100 RPM |
| Size / Dimension Diameter | 3.386 in |
| Size / Dimension Shape | Round |
| Termination Style | Wire Leads |
| Torque - Max Momentary (mNm) | 2451.63 mNm |
| Torque - Max Momentary (oz-in) | 347.18 oz-in |
| Torque - Rated (mNm) | 637.43 mNm |
| Torque - Rated (oz-in) | 90.27 oz-in |
| Type | DC Motor |
| Voltage - Rated | 24 VAC |
