Description
General part information
TPA6531N-S6TR

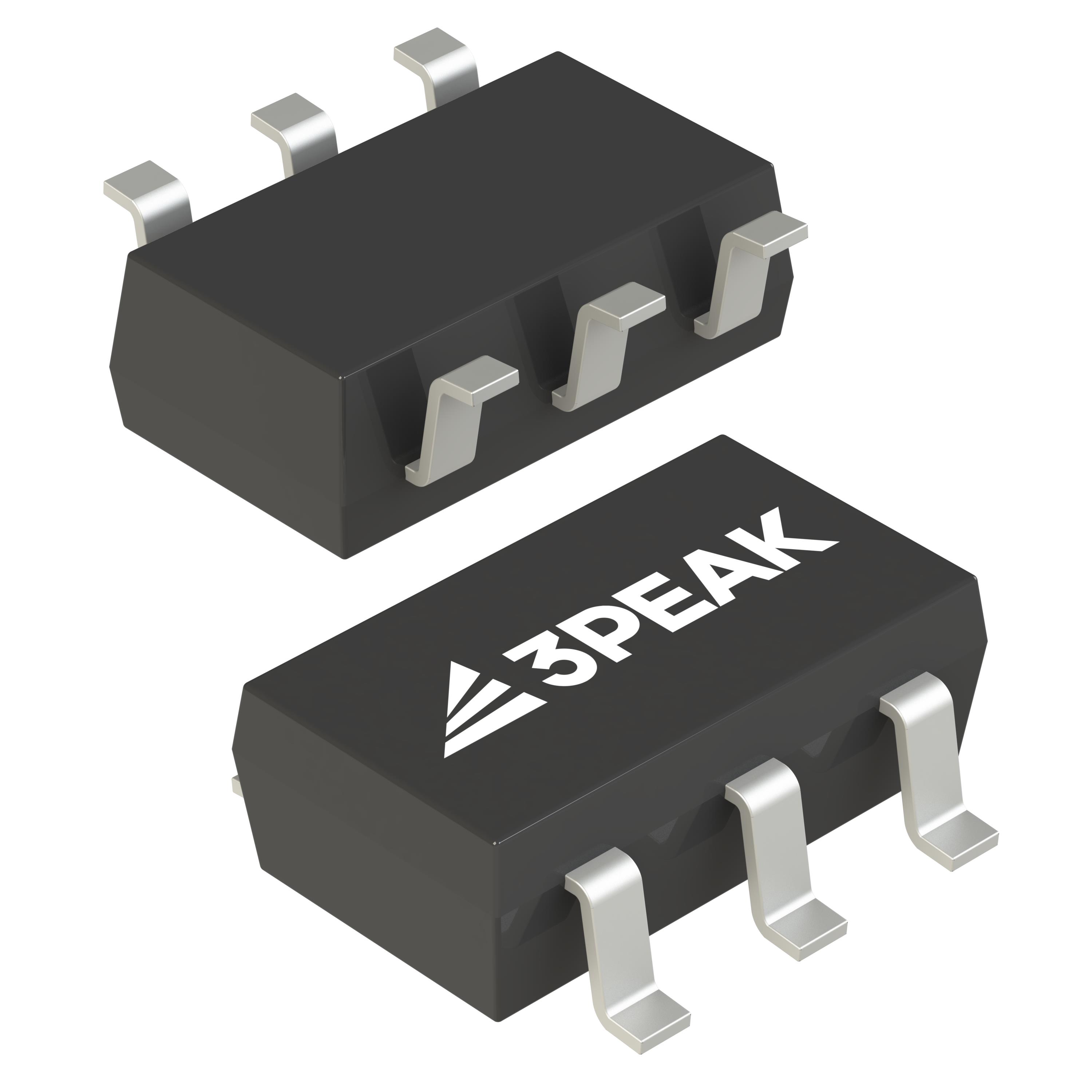

Standard Amplifier 1 Circuit Push-Pull, Rail-to-Rail SOT-23-6
Technical Specifications
Parameters and characteristics for this part
| Specification | TPA6531N-S6TR |
|---|---|
| Amplifier Type | Standard |
| Current - Input Bias | 25 nA |
| Current - Output / Channel | 240 mA |
| Current - Supply | 20 µA |
| Gain Bandwidth Product | 300 kHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Push-Pull, Rail-to-Rail |
| Package / Case | SOT-23-6 |
| Package Name | SOT-23-6 |
| Slew Rate | 0.15 V/µs |
| Voltage - Input Offset | 500 µV |
| Voltage - Supply Span (Max) | 5.5 V |
| Voltage - Supply Span (Min) | 1.75 V |
