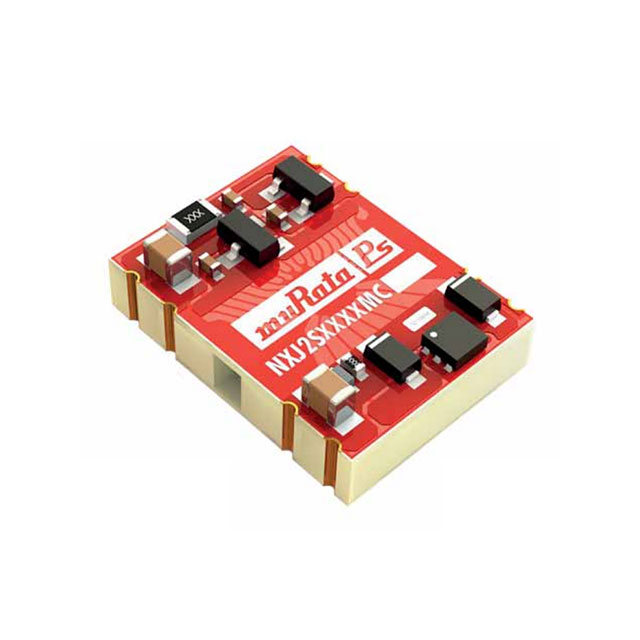

NXJ2S0505MC-R7
ActiveMurata Power Solutions Inc.
DC-DC CONVERTER, 5V, 0.4A
Deep-Dive with AI
Search across all available documentation for this part.
NXJ2S0505MC-R7
ActiveMurata Power Solutions Inc.
DC-DC CONVERTER, 5V, 0.4A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NXJ2S0505MC-R7 | NXJ2S05 Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial), Medical | ITE (Commercial), Medical |
| Current - Output (Max) [Max] | 400 mA | 400 mA |
| Features | SCP | SCP |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 8 Leads | 8 Leads |
| Package / Case | 12-SMD Module | 12-SMD Module |
| Power (Watts) | 2 W | 2 W |
| Size / Dimension [x] | 15.5 mm | 15.5 mm |
| Size / Dimension [x] | 0.61 in | 0.61 in |
| Size / Dimension [y] | 11.4 mm | 11.4 mm |
| Size / Dimension [y] | 0.45 in | 0.45 in |
| Size / Dimension [z] | 0.17 in | 0.17 in |
| Size / Dimension [z] | 4.4 mm | 4.4 mm |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 V |
| Voltage - Isolation | 5.2 kV | 5.2 kV |
| Voltage - Output 1 | 5 V | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
NXJ2S05 Series
DC-DC CONVERTER, 5V, 0.4A
| Part | Type | Current - Output (Max) [Max] | Package / Case | Package / Case | Mounting Type | Features | Applications | Voltage - Isolation | Number of Outputs | Voltage - Input (Min) [Min] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NXJ2S0505MC-R7 | Isolated Module | 400 mA | 8 Leads | 12-SMD Module | Surface Mount | SCP | ITE (Commercial), Medical | 5.2 kV | 1 | 4.5 V | 11.4 mm | 15.5 mm | 0.61 in | 0.17 in | 4.4 mm | 0.45 in | 5.5 V | 85 °C | -40 °C | 5 V | 2 W |
Murata Power Solutions Inc. NXJ2S0505MC-R7 |
Description
General part information
NXJ2S05 Series
Isolated Module DC DC Converter 1 Output 5V 400mA 4.5V - 5.5V Input
