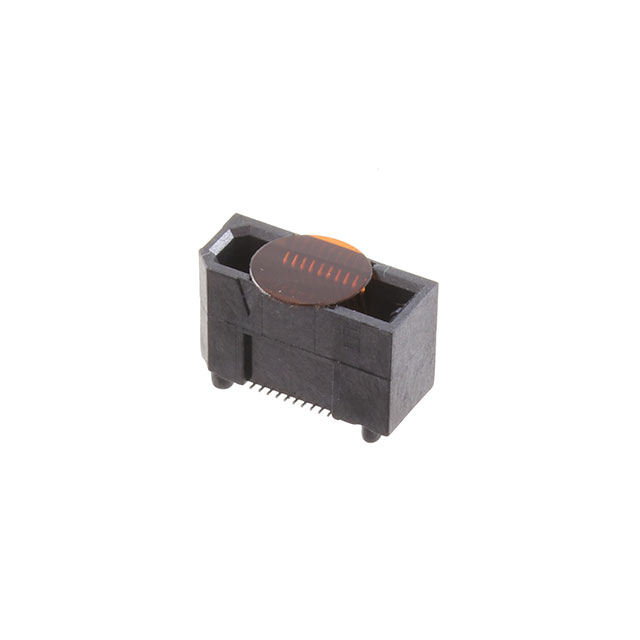

ERF5-010-07.0-L-DV-K-TR

Active

Samtec Inc.

CONN SOCKET 20POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SOCKET 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	ERF5-010-07.0-L-DV-K-TR

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board [z]	6.9 mm
Height Above Board [z]	0.272 in
Mated Stacking Heights	11 mm, 12 mm, 9 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish	Mated Stacking Heights	Connector Type	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness	Features	Number of Positions	Mounting Type	Height Above Board
Samtec Inc. ERF5-010-05.0-S-DV-K-TR	0.5 mm	0.02 in	2	Gold	7 mm 9 mm 10 mm	Socket Center Strip Contacts	4.9 mm	0.193 in	0.76 Ám	30 Áin	Board Guide Pick and Place	20	Surface Mount
Samtec Inc. ERF5-010-07.0-L-DV-TR	0.5 mm	0.02 in	2	Gold	9 mm 11 mm 12 mm	Socket Center Strip Contacts	6.9 mm	0.272 in	0.25 Ám	10 Áin	Board Guide	20	Surface Mount
Samtec Inc. ERF5-010-05.0-S-DV-WT-TR	0.5 mm	0.02 in	2	Gold	7 mm 9 mm 10 mm	Socket Center Strip Contacts	4.9 mm	0.193 in	0.76 Ám	30 Áin	Board Guide Solder Retention	20	Surface Mount
Samtec Inc. ERF5-010-07.0-L-DV-K-TR	0.5 mm	0.02 in	2	Gold	9 mm 11 mm 12 mm	Socket Center Strip Contacts	6.9 mm	0.272 in	0.25 Ám	10 Áin	Board Guide Pick and Place	20	Surface Mount
Samtec Inc. ERF5-010-01-L-D-RA	0.5 mm	0.02 in	2	Gold		Socket Center Strip Contacts		0.187 in	0.25 Ám	10 Áin	Board Guide	20	Surface Mount Right Angle	4.75 mm
Samtec Inc. ERF5-010-01-L-D-RA-TR	0.5 mm	0.02 in	2	Gold		Socket Center Strip Contacts		0.187 in	0.25 Ám	10 Áin	Board Guide	20	Surface Mount Right Angle	4.75 mm
Samtec Inc. ERF5-010-01-S-D-RA-TR	0.5 mm	0.02 in	2	Gold		Socket Center Strip Contacts		0.187 in	0.76 Ám	30 Áin	Board Guide	20	Surface Mount Right Angle	4.75 mm
Samtec Inc. ERF5-010-05.0-L-DV-FL-TR	0.5 mm	0.02 in	2	Gold	7 mm 9 mm 10 mm	Socket Center Strip Contacts	4.9 mm	0.193 in	0.25 Ám	10 Áin	Board Lock Solder Retention	20	Surface Mount
