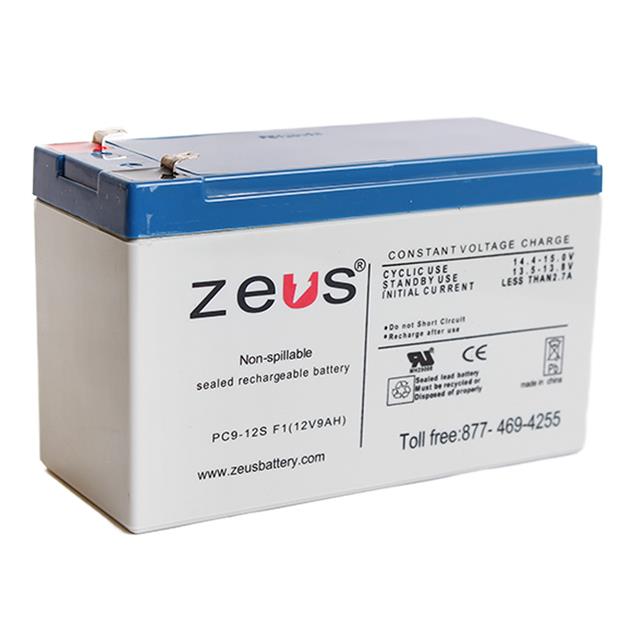

PC9-12SF1
ActiveZEUS Battery Products
BATTERY LEAD ACID 12V 9AH 12V
PC9-12SF1
ActiveZEUS Battery Products
BATTERY LEAD ACID 12V 9AH 12V
Description
General part information
PC9-12SF1
12V 12 V Sealed Lead Acid (SLA, VRLA) Battery Rechargeable (Secondary) 9Ah
Technical Specifications
Parameters and characteristics for this part
| Specification | PC9-12SF1 |
|---|---|
| Battery Cell Voltage | 12 V |
| Battery Chemistry | Sealed Lead Acid (SLA, VRLA) |
| Capacity (Charge) | 9 Ah |
| Shelf Life | 12 Months |
| Size / Dimension Height | 3.7 in |
| Size / Dimension Length | 5.94 in |
| Size / Dimension Width | 2.56 in |
| Standard Charge Current | 2.7 A |
| Standard Charge Time | 20 Hrs |
| Termination Length | 0.25 in |
| Termination Size (Primary) | 0.187 in |
| Termination Size (Secondary) | 0.032 in |
| Termination Style | Spade, .032", .187" |
| Voltage - Rated | 12 VAC |
