TOP100E15/200G

Active

Chip Shine / CSRF

ICT SPRING CONTACT TEST PROBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TOP100E15/200G

Active

Chip Shine / CSRF

ICT SPRING CONTACT TEST PROBE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1.40
		10	$ 1.29
		25	$ 1.17
		50	$ 1.06
		100	$ 0.97
		200	$ 0.91
		500	$ 0.86
		1000	$ 0.79
		2500	$ 0.73
		5000	$ 0.67

Description

General part information

TOP100 Series

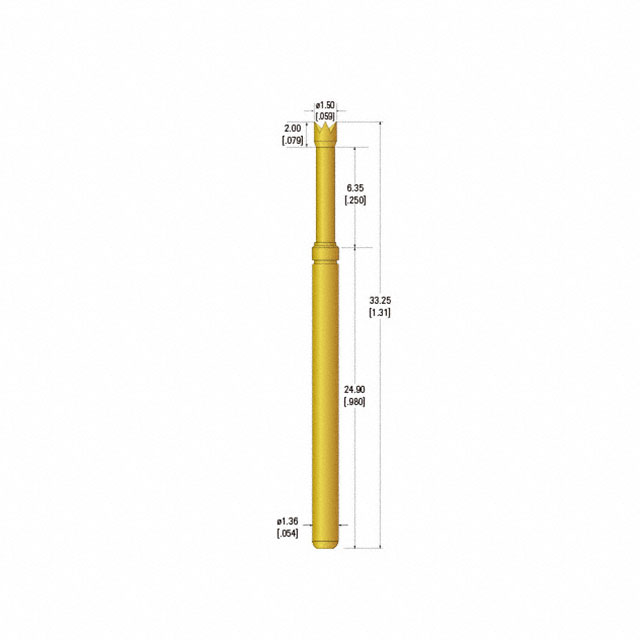

3 A Spring Tip - Cup Head, 0.059" (1.50mm) Dia

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TOP100E15/200G	TOP100 Series

Current Rating (Amps)	3 A	3 A
Length - Overall [x]	33.27 mm	33.27 mm
Length - Overall [x]	1.31 in	1.31 in
Length - Tip [x]	8.35 mm	8.35 mm
Length - Tip [x]	0.329 in	0.329 in
Material - Body	Phosphor Copper, Gold Plated	Phosphor Copper, Gold Plated
Material - Tip	Beryllium Copper, Steel, Gold Plated	Beryllium Copper, Steel, Gold Plated
Tip Type	-	0.025 - 0.079 in
Tip Type	-	Spring Tip - Serrated Head, Spring Tip - Crown Head, Spring Tip - Spherical Head, Spring Tip - Dagger Head, 0.035" (0.90mm) Dia, Spring Tip - Pyramid Head
Tip Type	-	0.059 - 2 mm
Tip Type	-	3.1 mm
Tip Type	-	0.059 - 1.5 in
Tip Type	-	1.5 mm

TOP100 Series

ICT SPRING CONTACT TEST PROBE

Part	Length - Overall [x]	Length - Overall [x]	Material - Body	Material - Tip	Tip Type [diameter]	Tip Type	Tip Type [diameter]	Current Rating (Amps)	Length - Tip [x]	Length - Tip [x]	Tip Type	Tip Type	Tip Type [diameter]
Chip Shine / CSRF TOP100I064/200G	33.27 mm	1.31 in	Phosphor Copper, Gold Plated	Beryllium Copper, Gold Plated, Steel	0.025 in	Spring Tip - Serrated Head	0.64 mm	3 A	8.35 mm	0.329 in
Chip Shine / CSRF TOP100I31/200G	33.27 mm	1.31 in	Phosphor Copper, Gold Plated	Beryllium Copper, Gold Plated, Steel		Spring Tip - Serrated Head		3 A	8.35 mm	0.329 in	3.1 mm	0.122 in
Chip Shine / CSRF TOP100ZH15/200G	33.27 mm	1.31 in	Phosphor Copper, Gold Plated	Beryllium Copper, Gold Plated, Steel		Spring Tip - Crown Head		3 A	8.35 mm	0.329 in
Chip Shine / CSRF TOP100C09/280G	33.27 mm	1.31 in	Phosphor Copper, Gold Plated	Beryllium Copper, Gold Plated, Steel	0.035 in	Spring Tip - Spherical Head	0.9 mm	3 A	8.35 mm	0.329 in
Chip Shine / CSRF TOP100E15/200G	33.27 mm	1.31 in	Phosphor Copper, Gold Plated	Beryllium Copper, Gold Plated, Steel				3 A	8.35 mm	0.329 in
Chip Shine / CSRF TOP100I20/200G	33.27 mm	1.31 in	Phosphor Copper, Gold Plated	Beryllium Copper, Gold Plated, Steel	0.079 in	Spring Tip - Serrated Head	2 mm	3 A	8.35 mm	0.329 in
Chip Shine / CSRF TOP100H13/280G	33.27 mm	1.31 in	Phosphor Copper, Gold Plated	Beryllium Copper, Gold Plated, Steel		Spring Tip - Crown Head		3 A	8.35 mm	0.329 in
Chip Shine / CSRF TOP100I15/200G	33.27 mm	1.31 in	Phosphor Copper, Gold Plated	Beryllium Copper, Gold Plated, Steel		Spring Tip - Serrated Head	0.059 in	3 A	8.35 mm	0.329 in			1.5 mm
Chip Shine / CSRF TOP100W09/200G	33.27 mm	1.31 in	Phosphor Copper, Gold Plated	Beryllium Copper, Gold Plated, Steel		Spring Tip - Dagger Head, 0.035" (0.90mm) Dia		3 A	8.35 mm	0.329 in
Chip Shine / CSRF TOP100W09/250G	33.27 mm	1.31 in	Phosphor Copper, Gold Plated	Beryllium Copper, Gold Plated, Steel		Spring Tip - Dagger Head, 0.035" (0.90mm) Dia		3 A	8.35 mm	0.329 in
