Description
General part information

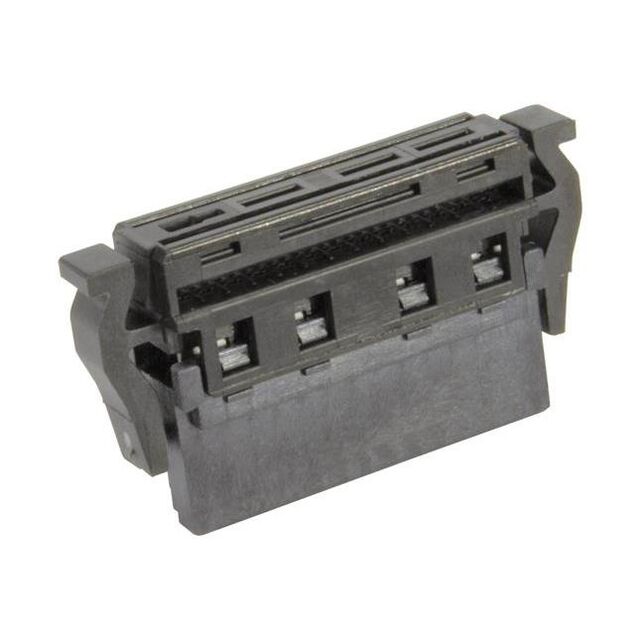

15290162501000
16 Position Rectangular Receptacle Connector IDC Tin 30 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 15290162501000 |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Contact Type | Female Socket, Power |
| Fastening Type | Latch Lock |
| Features | Feed Through, Strain Relief |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Pitch | 0.05 in |
| Row Spacing | 0.05 in |
| Wire Gauge | 30 AWG |
| Wire Type | Ribbon Cable |
