AE1000B11605
ActiveAnatech Electronics Inc.

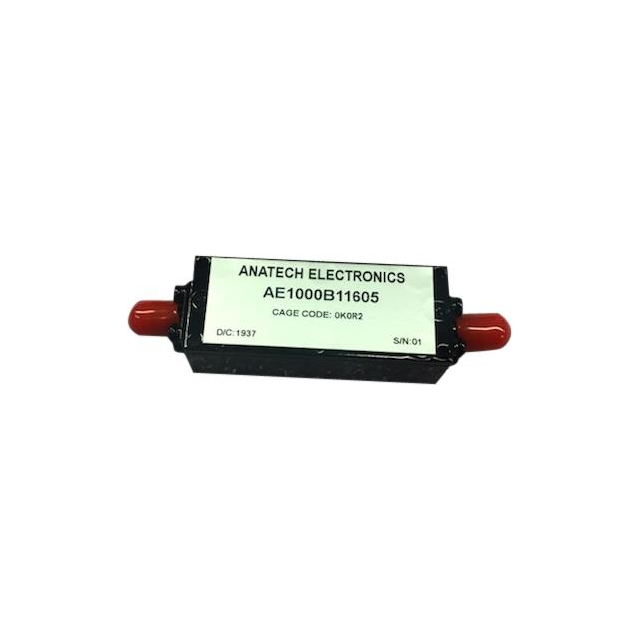

RF FILTER BAND PASS 1GHZ MODULE
AE1000B11605
ActiveAnatech Electronics Inc.
RF FILTER BAND PASS 1GHZ MODULE
Description
General part information
AE1000B11605
1GHz Center Frequency Band Pass RF Filter (Radio Frequency) 1.5GHz Bandwidth 2dB Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | AE1000B11605 |
|---|---|
| Bandwidth | 1.5 GHz |
| Filter Type | Band Pass |
| Frequency (Center) | 1 GHz |
| Height (Max) | 0.602 in |
| Insertion Loss | 2 dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Length | 1.969 in |
| Size / Dimension Width | 0.787 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
