VNB14NV04-E
ActiveSTMicroelectronics
IC PWR DRIVER N-CHAN 1:1 D2PAK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VNB14NV04-E
ActiveSTMicroelectronics
IC PWR DRIVER N-CHAN 1:1 D2PAK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VNB14NV04-E | VNB14 Series |
|---|---|---|
| Current - Output (Max) [Max] | 12 A | 12 A |
| Fault Protection | Over Temperature, Current Limiting (Fixed), Over Voltage | Over Temperature, Current Limiting (Fixed), Over Voltage |
| Input Type | Non-Inverting | Non-Inverting |
| Interface | On/Off | On/Off |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | Low Side | Low Side |
| Output Type | N-Channel | N-Channel |

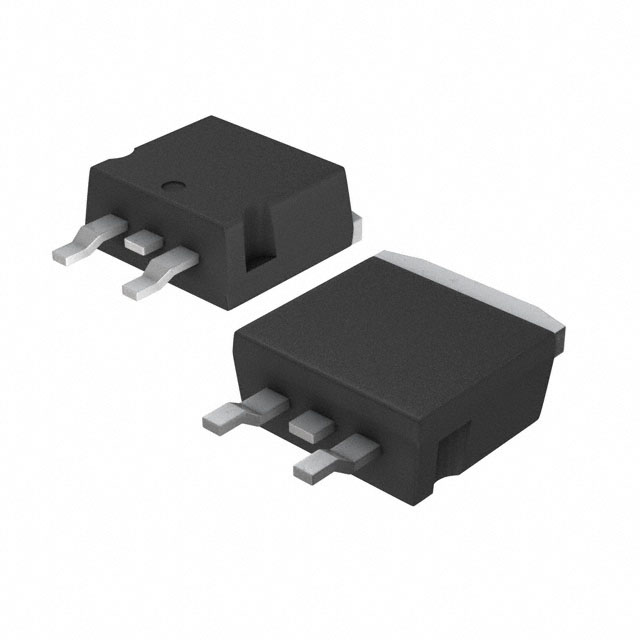

| Package / Case | D2PAK (2 Leads + Tab), TO-263AB, TO-263-3 | D2PAK (2 Leads + Tab), TO-263AB, TO-263-3 |
| Ratio - Input:Output [custom] | 1:1 | 1:1 |
| Rds On (Typ) | 35 mOhm | 35 mOhm |
| Supplier Device Package | D2PAK | D2PAK |
| Switch Type | General Purpose | General Purpose |
| Voltage - Load | 36 V | 36 V |
| Voltage - Supply (Vcc/Vdd) | False | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
VNB14 Series
IC PWR DRIVER N-CHAN 1:1 D2PAK
| Part | Voltage - Supply (Vcc/Vdd) | Rds On (Typ) | Fault Protection | Supplier Device Package | Input Type | Output Type | Output Configuration | Mounting Type | Number of Outputs | Voltage - Load | Package / Case | Ratio - Input:Output [custom] | Interface | Switch Type | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics VNB14NV04 | 35 mOhm | Current Limiting (Fixed), Over Temperature, Over Voltage | D2PAK | Non-Inverting | N-Channel | Low Side | Surface Mount | 1 | 36 V | D2PAK (2 Leads + Tab), TO-263-3, TO-263AB | 1:1 | On/Off | General Purpose | 150 °C | -40 °C | 12 A | |
STMicroelectronics VNB14NV04-E | 35 mOhm | Current Limiting (Fixed), Over Temperature, Over Voltage | D2PAK | Non-Inverting | N-Channel | Low Side | Surface Mount | 1 | 36 V | D2PAK (2 Leads + Tab), TO-263-3, TO-263AB | 1:1 | On/Off | General Purpose | 150 °C | -40 °C | 12 A |
Description
General part information
VNB14 Series
Power Switch/Driver 1:1 N-Channel 12A D2PAK
