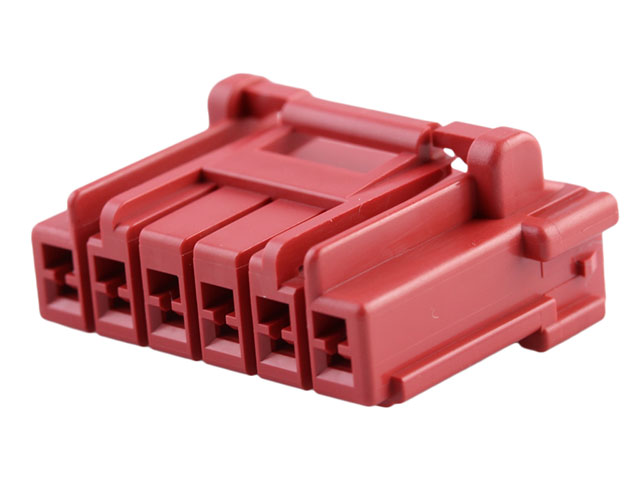

Specification	5046930602

Color	Red
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.13 in

504693 Series

Part	Contact Termination	Mounting Type	Pitch	Number of Positions	Color	Number of Rows	Insulation Material	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type	Contact Type	Fastening Type	Note
Molex 5046930300	Crimp	Free Hanging (In-Line)	0.13 in	3	Natural	1	Polybutylene Terephthalate (PBT)	-40 °C	105 °C	Receptacle	Female Socket	Latch Holder
Molex 5046930205	Crimp	Free Hanging (In-Line)	0.13 in	2	Pink	1	Polybutylene Terephthalate (PBT)	-40 °C	105 °C	Receptacle	Female Socket	Latch Holder	Contacts Not Included
Molex 5046930600	Crimp	Free Hanging (In-Line)	0.13 in	6	Natural	1	Polybutylene Terephthalate (PBT)	-40 °C	105 °C	Receptacle	Female Socket	Latch Holder
Molex 5046930301	Crimp	Free Hanging (In-Line)	0.13 in	3	Black	1	Polybutylene Terephthalate (PBT)	-40 °C	105 °C	Receptacle	Female Socket	Latch Holder	Contacts Not Included
Molex 5046930203	Crimp	Free Hanging (In-Line)	0.13 in	2	Yellow	1	Polybutylene Terephthalate (PBT)	-40 °C	105 °C	Receptacle	Female Socket	Latch Holder	Contacts Not Included
Molex 5046930202	Crimp	Free Hanging (In-Line)	0.13 in	2	Red	1	Polybutylene Terephthalate (PBT)	-40 °C	105 °C	Receptacle	Female Socket	Latch Holder	Contacts Not Included
Molex 5046930200	Crimp	Free Hanging (In-Line)	0.13 in	2	Natural	1	Polybutylene Terephthalate (PBT)	-40 °C	105 °C	Receptacle	Female Socket	Latch Holder	Contacts Not Included
Molex 5046930604	Crimp	Free Hanging (In-Line)	0.13 in	6	Blue	1	Polybutylene Terephthalate (PBT)	-40 °C	105 °C	Receptacle	Female Socket	Latch Holder	Contacts Not Included
Molex 5046930401	Crimp	Free Hanging (In-Line)	0.13 in	4	Black	1	Polybutylene Terephthalate (PBT)	-40 °C	105 °C	Receptacle	Female Socket	Latch Holder	Contacts Not Included
Molex 5046930201	Crimp	Free Hanging (In-Line)	0.13 in	2	Black	1	Polybutylene Terephthalate (PBT)	-40 °C	105 °C	Receptacle	Female Socket	Latch Holder	Contacts Not Included
