Technical Specifications
Parameters and characteristics for this part
| Specification | JANTXV1N4249 |
|---|---|
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage @ Vr | 1 µA |
| Grade | Military |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -65 C |
| Package / Case | A, Axial |
| Qualification | MIL-PRF-19500/286 |
| Reverse Recovery Time (trr) | 5 µs |
| Speed | Standard Recovery >500ns |
| Speed | 200 mA |
| Supplier Device Package | A, Axial |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 195 | $ 6.94 | |
| Microchip Direct | N/A | 1 | $ 7.48 | |
JANTXV1N4249-Rectifier-Diode Series

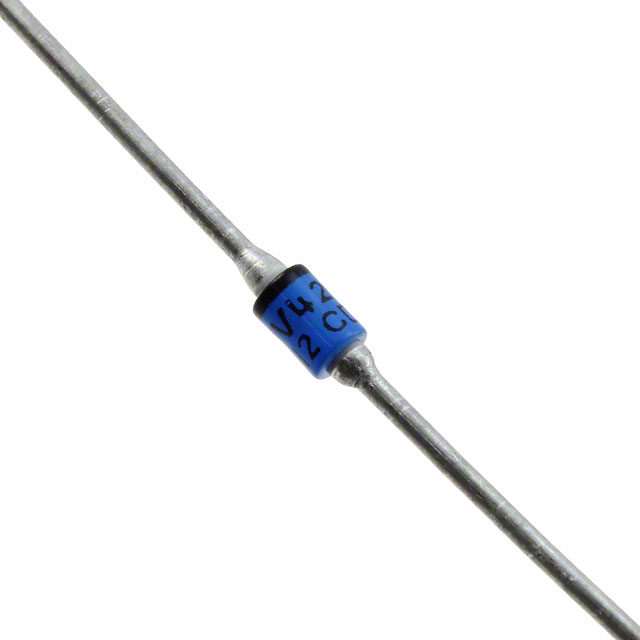

Diode 1000V, 1A Through Hole A, Axial
| Part | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] | Technology | Mounting Type | Supplier Device Package | Package / Case | Reverse Recovery Time (trr) | Current - Average Rectified (Io) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) [Max] | Voltage - Forward (Vf) (Max) @ If | Grade | Qualification | Speed | Speed |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology JANTXV1N4249 | 175 ░C | -65 C | Standard | Through Hole | A, Axial | A, Axial | 5 µs | 1 A | 1 µA | 1000 V | 1.3 V | Military | MIL-PRF-19500/286 | Standard Recovery >500ns | 200 mA |
Description
General part information
JANTXV1N4249-Rectifier-Diode Series
This "standard recovery" rectifier diode series is military qualified to MIL-PRF-19500/286 and is ideal for high-reliability applications where a failure cannot be tolerated. These industry-recognized 1.0 Amp rated rectifiers for working peak reverse voltages from 200 to 1000 volts are hermetically sealed with voidless-glass construction using an internal "Category I" metallurgical bond. These devices are similar in ratings to the 1N5614 thru 1N5622 series where surface mount MELF package configurations are available by adding a "US" suffix (see separate data sheet for 1N5614US thru 1N5622US). Microchip also offers numerous other rectifier products to meet higher and lower current ratings with various recovery time speed requirements including fast and ultrafast device types in both throughhole and surface mount packages.
