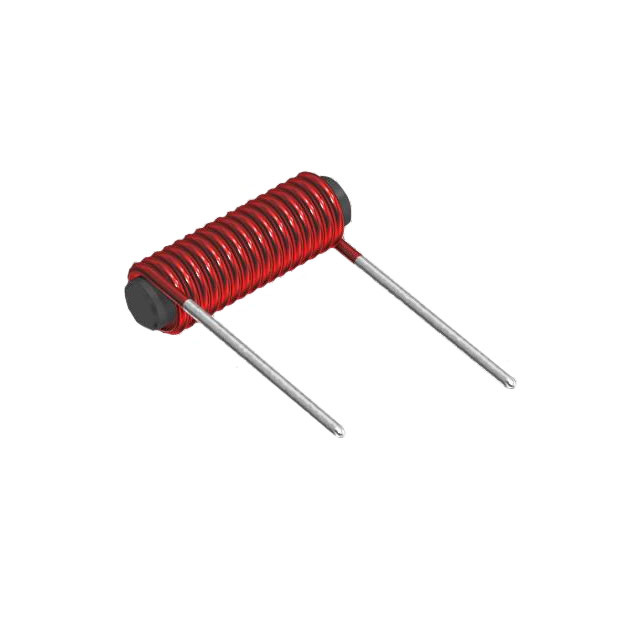

AML0615-2R9M7R5-S1
NRNDTDK Corporation
CMC 7.5A 2LN TH AEC-Q200
AML0615-2R9M7R5-S1
NRNDTDK Corporation
CMC 7.5A 2LN TH AEC-Q200
Description
General part information
AML0615-2R9M7R5-S1
2 Line Common Mode Choke Through Hole 7.5A DCR 12mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | AML0615-2R9M7R5-S1 |
|---|---|
| Current Rating (Max) | 7.5 A |
| DC Resistance (DCR) (Max) | 12 mOhm |
| Filter Type | Power Line |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Horizontal Cylinder, Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Diameter | 0.236 in |
| Size / Dimension Length | 0.591 in |
