111196-1

Active

TE Connectivity AMP Connectors

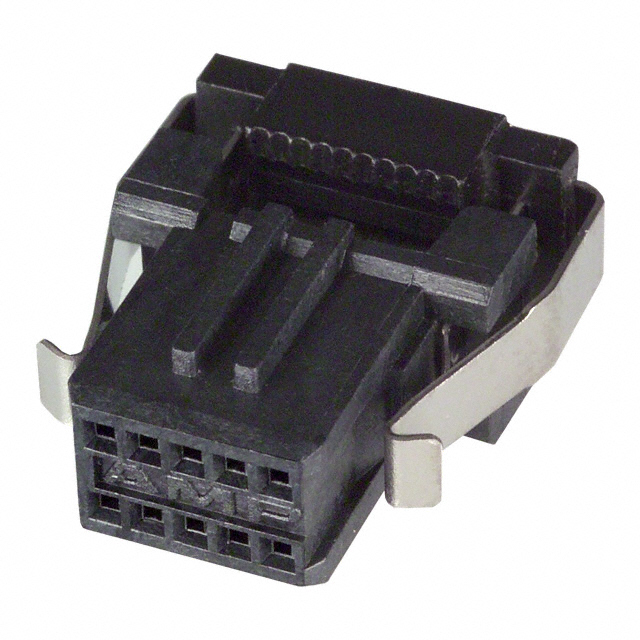

CONN RCPT 10P IDC 30-32AWG GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

111196-1

Active

TE Connectivity AMP Connectors

CONN RCPT 10P IDC 30-32AWG GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	111196-1	111196 Series

Cable Termination	IDC	IDC
Color	Black	Black
Connector Type	Receptacle	Receptacle
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Features	Feed Through	Feed Through
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	10	10 - 80
Number of Rows	2	2
Pitch [x]	0.05 in	0.05 in
Pitch [x]	1.27 mm	1.27 mm
Row Spacing	2.54 mm	2.54 mm
Row Spacing [x]	0.1 in	0.1 in
Wire Gauge [Max]	32 AWG	32 AWG
Wire Gauge [Min]	30 AWG	30 AWG
Wire Type	Ribbon Cable	Ribbon Cable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

111196 Series

CONN RCPT 26P IDC 30-32AWG GOLD

Part	Fastening Type	Color	Contact Finish	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Wire Type	Features	Wire Gauge [Min]	Wire Gauge [Max]	Number of Positions	Connector Type	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Mounting Type	Contact Type
TE Connectivity AMP Connectors 2-111196-9	Latch Lock	Black	Gold	2	0.76 Ám	30 Áin	IDC	Ribbon Cable	Feed Through	30 AWG	32 AWG	26	Receptacle	0.1 in	2.54 mm	0.05 in	1.27 mm	Free Hanging (In-Line)	Female Socket
TE Connectivity AMP Connectors 111196-5	Latch Lock	Black	Gold	2	0.76 Ám	30 Áin	IDC	Ribbon Cable	Feed Through	30 AWG	32 AWG	24	Receptacle	0.1 in	2.54 mm	0.05 in	1.27 mm	Free Hanging (In-Line)	Female Socket
TE Connectivity AMP Connectors 2-111196-3	Latch Lock	Black	Gold	2	0.76 Ám	30 Áin	IDC	Ribbon Cable	Feed Through	30 AWG	32 AWG	72	Receptacle	0.1 in	2.54 mm	0.05 in	1.27 mm	Free Hanging (In-Line)	Female Socket
TE Connectivity AMP Connectors 1-111196-1	Latch Lock	Black	Gold	2	0.76 Ám	30 Áin	IDC	Ribbon Cable	Feed Through	30 AWG	32 AWG	50	Receptacle	0.1 in	2.54 mm	0.05 in	1.27 mm	Free Hanging (In-Line)	Female Socket
TE Connectivity AMP Connectors 111196-1	Latch Lock	Black	Gold	2	0.76 Ám	30 Áin	IDC	Ribbon Cable	Feed Through	30 AWG	32 AWG	10	Receptacle	0.1 in	2.54 mm	0.05 in	1.27 mm	Free Hanging (In-Line)	Female Socket
TE Connectivity AMP Connectors 111196-9	Latch Lock	Black	Gold	2	0.76 Ám	30 Áin	IDC	Ribbon Cable	Feed Through	30 AWG	32 AWG	40	Receptacle	0.1 in	2.54 mm	0.05 in	1.27 mm	Free Hanging (In-Line)	Female Socket
TE Connectivity AMP Connectors 2-111196-5	Latch Lock	Black	Gold	2	0.76 Ám	30 Áin	IDC	Ribbon Cable	Feed Through	30 AWG	32 AWG	10	Receptacle	0.1 in	2.54 mm	0.05 in	1.27 mm	Free Hanging (In-Line)	Female Socket
TE Connectivity AMP Connectors 1-111196-5	Latch Lock	Black	Gold	2	0.76 Ám	30 Áin	IDC	Ribbon Cable	Feed Through	30 AWG	32 AWG	80	Receptacle	0.1 in	2.54 mm	0.05 in	1.27 mm	Free Hanging (In-Line)	Female Socket
TE Connectivity AMP Connectors 2-111196-0	Latch Lock	Black	Gold	2	0.76 Ám	30 Áin	IDC	Ribbon Cable	Feed Through	30 AWG	32 AWG	40	Receptacle	0.1 in	2.54 mm	0.05 in	1.27 mm	Free Hanging (In-Line)	Female Socket
TE Connectivity AMP Connectors 111196-4	Latch Lock	Black	Gold	2	0.76 Ám	30 Áin	IDC	Ribbon Cable	Feed Through	30 AWG	32 AWG	20	Receptacle	0.1 in	2.54 mm	0.05 in	1.27 mm	Free Hanging (In-Line)	Female Socket

Description

General part information

111196 Series

10 Position Rectangular Receptacle Connector IDC Gold 30-32 AWG
