9913 010500

Active

Belden Inc.

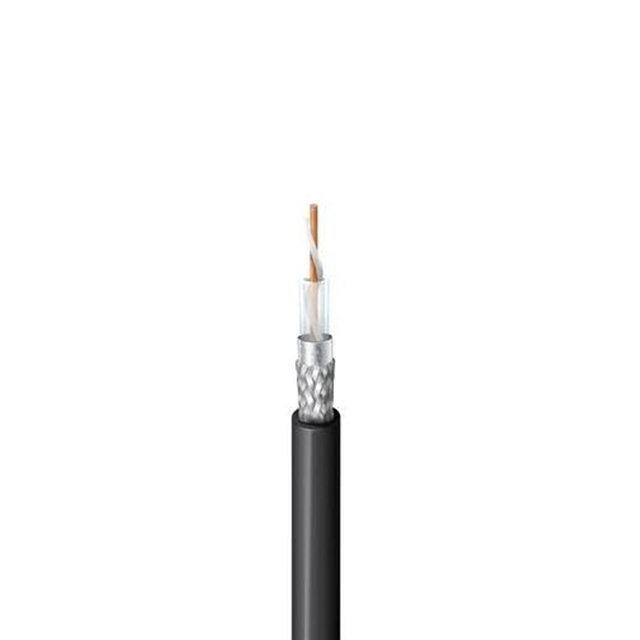

RG-8/U TYPE COAX

Search across all available documentation for this part.

Active

Belden Inc.

RG-8/U TYPE COAX

Technical Specifications

Parameters and characteristics for this part

Specification	9913 010500

Cable Group	RG-8
Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	7.24 mm
Dielectric Diameter [diameter]	0.285 in
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	10.29 mm
Jacket (Insulation) Diameter [diameter]	0.405 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-30 ░C
Shield Coverage	95 %, 100 %
Shield Material	Aluminum, Polyester, Copper, Tinned
Shield Type	Foil, Braid
Usage	RF Signal
VoP, Velocity of Propagation	84
Wire Gauge	10 AWG

Part	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Jacket Color	Shield Material	Cable Type	Impedance	Conductor Strand	Jacket (Insulation) Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Length	Length	VoP, Velocity of Propagation	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Shield Type	Wire Gauge	Length [x]	Length [x]
Belden Inc. 9913 010500	RF Signal	10.29 mm	0.405 in	95 % 100 %	Black	Aluminum Polyester Copper Tinned	Coaxial	50 Ohms	Solid	Poly-Vinyl Chloride (PVC)	7.24 mm	0.285 in	152.4 m	6000 in	84	RG-8	-30 ░C	75 ░C	Copper Bare	Braid Foil	10 AWG
Belden Inc. 9913 010100	RF Signal	10.29 mm	0.405 in	95 % 100 %	Black	Aluminum Polyester Copper Tinned	Coaxial	50 Ohms	Solid	Poly-Vinyl Chloride (PVC)	7.24 mm	0.285 in			84	RG-8	-30 ░C	75 ░C	Copper Bare	Braid Foil	10 AWG	100 ft	30.48 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 3.12

General part information

Coaxial Cable 10 AWG RG-8 500.0' (152.40m) 50 Ohms
