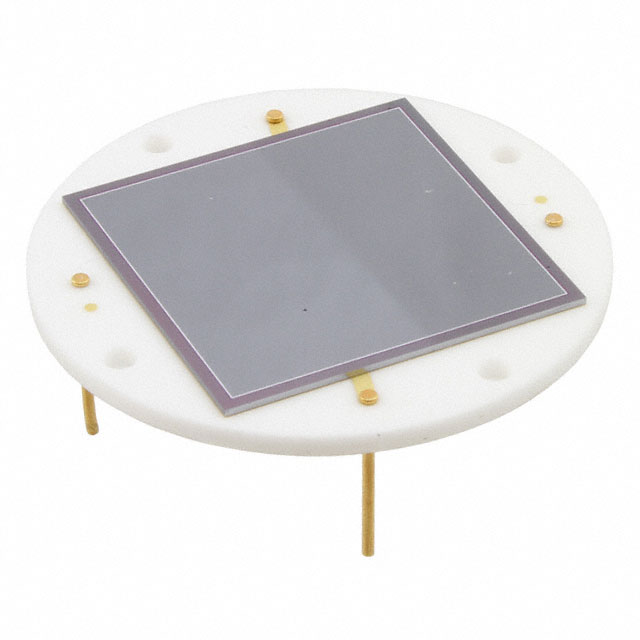

AXUV576C

Active

Opto Diode Corp

SENSOR PHOTODIODE 820NM

Search across all available documentation for this part.

Active

Opto Diode Corp

SENSOR PHOTODIODE 820NM

Technical Specifications

Parameters and characteristics for this part

SENSOR PHOTODIODE 820NM

Part	Spectral Range [Min] [custom]	Spectral Range [Max] [custom]	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Wavelength	Operating Temperature [Min]	Operating Temperature [Max]	Active Area
Opto Diode Corp AXUV576C	250 nm	1100 nm	Through Hole	10 V	820 nm	-10 °C	40 °C	576.5 mm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1026.08

General part information

Photodiode 820nm

Technical documentation and resources
