1-794076-0

Active

TE Connectivity AMP Connectors

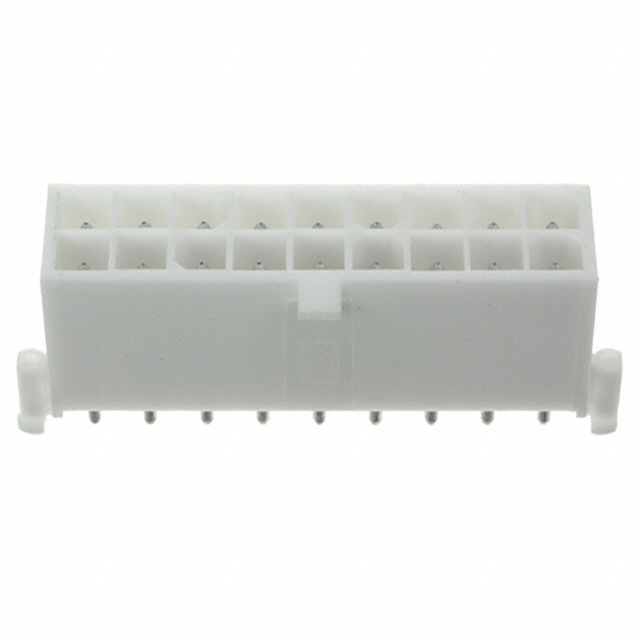

CONN HEADER VERT 18POS 4.14MM

Deep-Dive with AI

Search across all available documentation for this part.

1-794076-0

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 18POS 4.14MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.00
		10	$ 4.97
		200	$ 3.89
		600	$ 3.56
		1000	$ 3.42

Description

General part information

794076 Series

Connector Header Through Hole 18 position 0.163" (4.14mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-794076-0	794076 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	-	Tin-Lead, Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	150 Áin	30 - 150 Áin
Contact Finish Thickness - Mating	3.81 Ám	0.76 - 3.81 Ám
Contact Finish Thickness - Post	150 Áin	150 Áin
Contact Finish Thickness - Post	3.81 Ám	3.81 Ám
Contact Length - Post	4.45 mm	4.45 mm
Contact Length - Post	0.175 in	0.175 in
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	White	White
Insulation Height	13.5 mm	13.5 mm
Insulation Height	0.531 in	0.531 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	18	18
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 - 105 °C
Operating Temperature [Min]	-20 C	-20 C
Pitch - Mating	4.14 mm	4.14 mm
Pitch - Mating	0.163 in	0.163 in
Row Spacing - Mating	4.14 mm	4.14 mm
Row Spacing - Mating	0.163 in	0.163 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

794076 Series

CONN HEADER VERT 18POS 4.14MM

Part	Number of Positions	Termination	Connector Type	Fastening Type	Shrouding	Pitch - Mating	Pitch - Mating	Applications	Contact Finish - Post	Contact Material	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Style	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Contact Shape	Number of Positions Loaded	Mounting Type	Contact Finish - Mating
TE Connectivity AMP Connectors 1-794076-0	18	Solder	Header	Locking Ramp	Shrouded - 4 Wall	4.14 mm	0.163 in	General Purpose	Tin	Brass	UL94 V-0	85 °C	-20 C	Male Pin	Nylon, Polyamide (PA)	150 Áin	3.81 Ám	600 VAC	White	4.14 mm	0.163 in	Board to Cable/Wire	Varies by Wire Gauge	4.45 mm	0.175 in	2	150 Áin	3.81 Ám	13.5 mm	0.531 in	Circular	All	Through Hole
TE Connectivity AMP Connectors 794076-1	18	Solder	Header	Locking Ramp	Shrouded - 4 Wall	4.14 mm	0.163 in	General Purpose	Tin-Lead	Brass	UL94 V-0	85 °C	-20 C	Male Pin	Nylon, Polyamide (PA)	150 Áin	3.81 Ám	600 VAC	White	4.14 mm	0.163 in	Board to Cable/Wire	Varies by Wire Gauge	4.45 mm	0.175 in	2	150 Áin	3.81 Ám	13.5 mm	0.531 in	Circular	All	Through Hole	Tin-Lead
TE Connectivity AMP Connectors 794076-2	18	Solder	Header	Locking Ramp	Shrouded - 4 Wall	4.14 mm	0.163 in	General Purpose	Tin-Lead	Brass	UL94 V-0	105 ░C	-20 C	Male Pin	Nylon, Polyamide (PA)	30 Áin	0.76 Ám	600 VAC	White	4.14 mm	0.163 in	Board to Cable/Wire	Varies by Wire Gauge	4.45 mm	0.175 in	2	150 Áin	3.81 Ám	13.5 mm	0.531 in	Circular	All	Through Hole	Gold
TE Connectivity AMP Connectors 1-794076-1	18	Solder	Header	Locking Ramp	Shrouded - 4 Wall	4.14 mm	0.163 in	General Purpose	Tin	Brass	UL94 V-0	105 ░C	-20 C	Male Pin	Nylon, Polyamide (PA)	30 Áin	0.76 Ám	600 VAC	White	4.14 mm	0.163 in	Board to Cable/Wire	Varies by Wire Gauge	4.45 mm	0.175 in	2	150 Áin	3.81 Ám	13.5 mm	0.531 in	Circular	All	Through Hole	Gold
