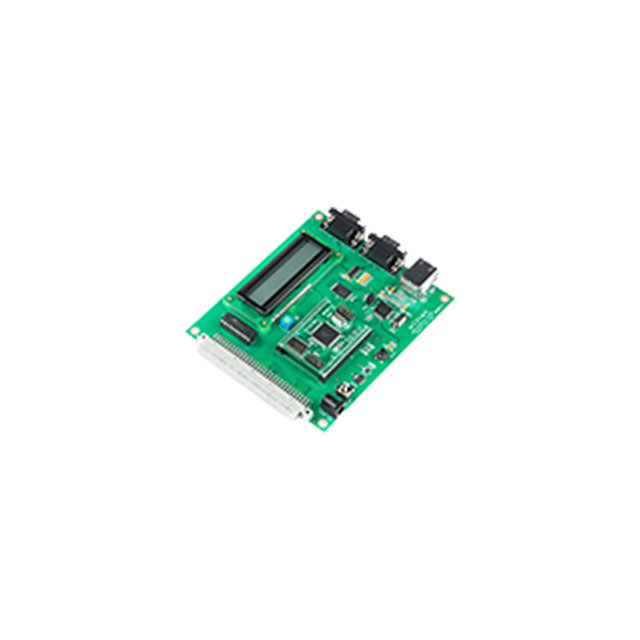

W5100E01-AVR

Active

WIZnet

W5100 EVALUATION BOARD BASED ON

Search across all available documentation for this part.

Active

WIZnet

W5100 EVALUATION BOARD BASED ON

Technical Specifications

Parameters and characteristics commom to parts in this series

W5100 EVALUATION BOARD BASED ON

Part	Function	Supplied Contents	Utilized IC / Part	Type	Current - Supply	Package / Case	Protocol	Supplier Device Package	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Standards
WIZnet W5100E01-AVR	Ethernet	Board(s), Cable(s), Power Supply	W5100	Interface
WIZnet W5100S-L	Controller				132 mA	48-LQFP	Ethernet	48-LQFP (7x7)	SPI	2.97 V	3.63 V	85 °C	-40 °C	10/100 Base-T/TX PHY

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3	$ 75.00

General part information

W5100 Ethernet Interface Evaluation Board
