926209-4 - 926209-4

926209-4

Active
TE Connectivity AMP Connectors

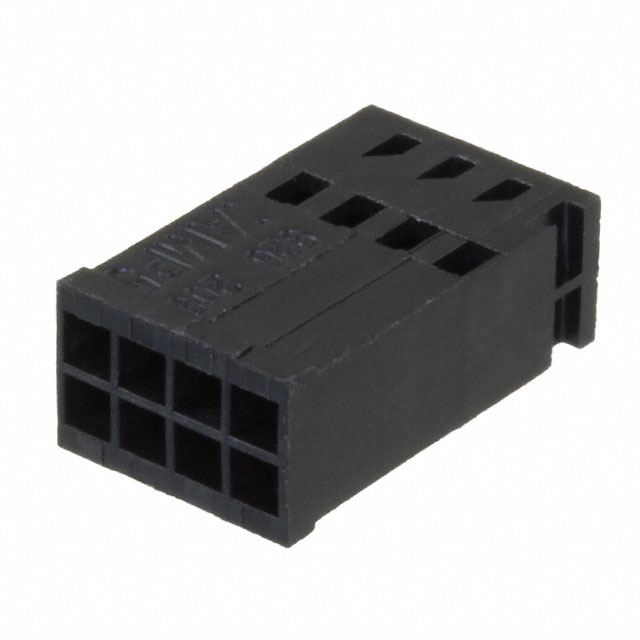

CONN RCPT HSG 8POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
926209-4 - 926209-4

926209-4

Active
TE Connectivity AMP Connectors

CONN RCPT HSG 8POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification926209-4926209 Series
ColorBlackBlack
Connector TypeReceptacleReceptacle
Contact TerminationCrimpCrimp
Contact TypeFemale SocketFemale Socket
Insulation MaterialPolybutylene Terephthalate (PBT), Glass FilledPolybutylene Terephthalate (PBT), Glass Filled
Mounting TypeFree Hanging (In-Line)Free Hanging (In-Line)
NoteContacts Not IncludedContacts Not Included
Number of Positions84 - 14
Number of Positions-16
Number of Rows22
Operating Temperature [Max]105 ░C105 ░C
Operating Temperature [Min]-65 ░C-65 ░C
Pitch [x]2.54 mm2.54 mm
Pitch [x]0.1 in0.1 in
Row Spacing2.54 mm2.54 mm
Row Spacing [x]0.1 in0.1 in

926209 Series

CONN RCPT HSG 10POS 2.54MM

PartNoteNumber of RowsOperating Temperature [Min]Operating Temperature [Max]Insulation MaterialContact TypeContact TerminationMounting TypeRow Spacing [x]Row SpacingConnector TypePitch [x]Pitch [x]ColorNumber of PositionsNumber of Positions
TE Connectivity AMP Connectors
926209-5
Contacts Not Included
2
-65 ░C
105 ░C
Polybutylene Terephthalate (PBT), Glass Filled
Female Socket
Crimp
Free Hanging (In-Line)
0.1 in
2.54 mm
Receptacle
2.54 mm
0.1 in
Black
10
TE Connectivity AMP Connectors
926209-7
Contacts Not Included
2
Female Socket
Crimp
Free Hanging (In-Line)
0.1 in
2.54 mm
Receptacle
2.54 mm
0.1 in
Black
14
TE Connectivity AMP Connectors
926209-2
Contacts Not Included
2
-65 ░C
105 ░C
Polybutylene Terephthalate (PBT), Glass Filled
Female Socket
Crimp
Free Hanging (In-Line)
0.1 in
2.54 mm
Receptacle
2.54 mm
0.1 in
Black
4
TE Connectivity AMP Connectors
926209-6
Contacts Not Included
2
-65 ░C
105 ░C
Polybutylene Terephthalate (PBT), Glass Filled
Female Socket
Crimp
Free Hanging (In-Line)
0.1 in
2.54 mm
Receptacle
2.54 mm
0.1 in
Black
12
TE Connectivity AMP Connectors
926209-4
Contacts Not Included
2
-65 ░C
105 ░C
Polybutylene Terephthalate (PBT), Glass Filled
Female Socket
Crimp
Free Hanging (In-Line)
0.1 in
2.54 mm
Receptacle
2.54 mm
0.1 in
Black
8
TE Connectivity AMP Connectors
926209-8
Contacts Not Included
2
-65 ░C
105 ░C
Polybutylene Terephthalate (PBT), Glass Filled
Female Socket
Crimp
Free Hanging (In-Line)
0.1 in
2.54 mm
Receptacle
2.54 mm
0.1 in
Black
16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 1.67
10$ 1.49
25$ 1.48
50$ 1.47
100$ 1.35
250$ 1.34
500$ 1.33

Description

General part information

926209 Series

8 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)

Documents

Technical documentation and resources
