SPM6550T-R68M

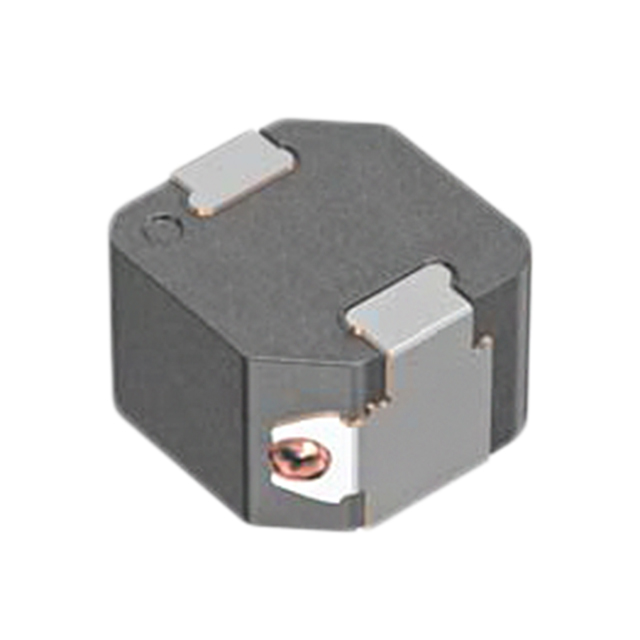

680 nH Shielded Drum Core, Wirewound Inductor 18.1 A 3.6mOhm Max 2-SMD, J-Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | SPM6550T-R68M |
|---|---|
| Current - Saturation (Isat) | 16.6 A |
| Current Rating | 18.1 A |
| DC Resistance (DCR) (Max) | 3.6 mOhm |
| Height - Seated (Max) | 0.197 in |
| Inductance | 680 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 2-SMD, J-Lead |
| Shielding | Shielded |
| Size / Dimension Length | 0.28 in |
| Size / Dimension Width | 0.256 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
