1554J2GYSL
ActiveHammond Manufacturing

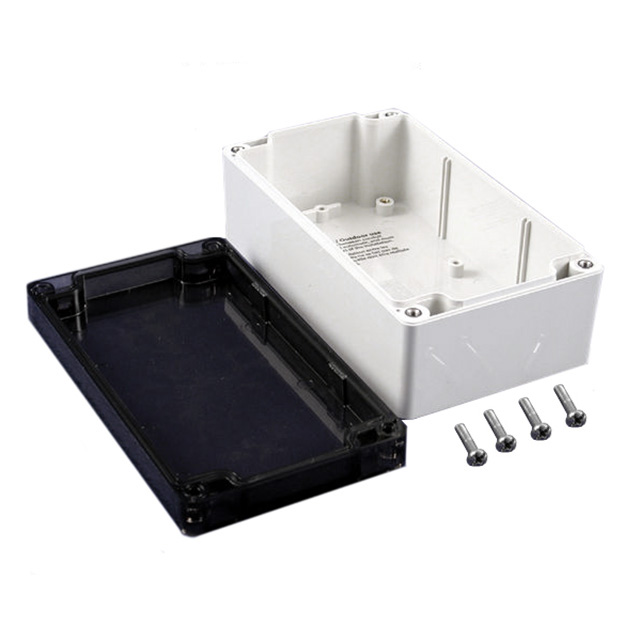

BOX PC GRY /SM 6.3"L X 3.54"W
Deep-Dive with AI
Search across all available documentation for this part.
1554J2GYSL
ActiveHammond Manufacturing
BOX PC GRY /SM 6.3"L X 3.54"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1554J2GYSL |
|---|---|
| Area (L x W) | 144 cm² |
| Area (L x W) | 22.3 in² |
| Color | Gray, Smoke Cover/Door |
| Container Type | Box |
| Design | Cover Included |
| Features | PCB Supports, Card Guides, Watertight |
| Height [z] | 2.362 in |
| Height [z] | 60 mm |
| Material | Polycarbonate |
| Material Flammability Rating | UL94 V-0 |
| Ratings | NEMA 13, NEMA 4, IP68, NEMA 4X, NEMA 12, UL-508 |
| Size / Dimension [x] | 6.299 " |
| Size / Dimension [x] | 159.99 mm |
| Size / Dimension [y] | 3.543 in |
| Size / Dimension [y] | 89.99 mm |
| Thickness | 3 mm |
| Thickness | 0.118 in |
| Weight | 0.52 lb |
| Weight | 235.87 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 28.03 | |
| 5 | $ 23.95 | |||
| 10 | $ 22.38 | |||
| 25 | $ 20.47 | |||
| 50 | $ 19.13 | |||
| 100 | $ 18.69 | |||
Description
General part information
1554J2GYSL
Box Polycarbonate Gray, Smoke Cover/Door Cover Included 6.299" L x 3.543" W (159.99mm x 89.99mm) X 2.362" (60.00mm)
Documents
Technical documentation and resources
No documents available
