Description
General part information

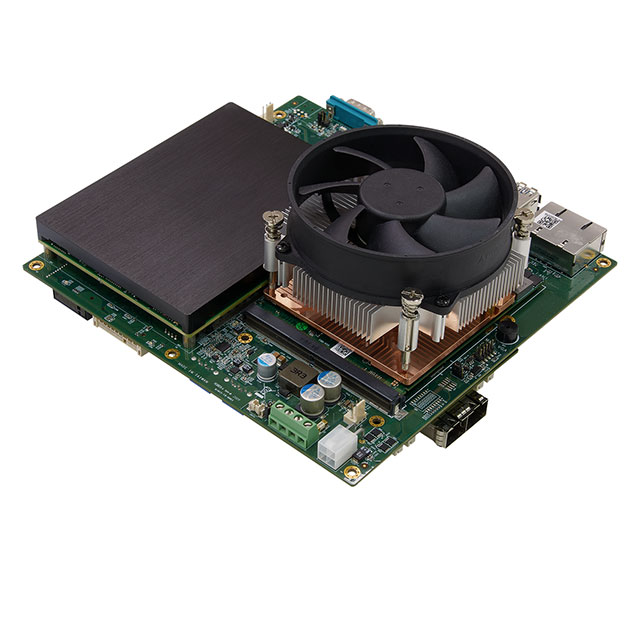

SK513-T606Q03
Single Board Computer 4.4GHz 6 Core 96GB/0GB RAM Intel Core i7-9850HE
Technical Specifications
Parameters and characteristics for this part
| Specification | SK513-T606Q03 |
|---|---|
| Cooling Type | Heat Sink |
| Core Processor | Intel Core i7-9850HE |
| Ethernet Connector | RJ45 (2) |
| Ethernet Ports | 2 |
| Ethernet Speed Options | 100Mbps, 10Mbps, 1000Mbps |
| Expansion Site/Bus | Mini-PCIe, M.2, Audio, PCIe/104, mSATA, LPC |
| Form Factor | COM Express 2.1 |
| Number of Cores | 6 |
| Number of Storage Interfaces | 2 count |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 45 W |
| RAM Capacity | 96 GB |
| RAM Installed | 0 GB |
| Serial Interface Count | 4 |
| Size / Dimension Length | 7.48 in |
| Size / Dimension Width | 7.28 in |
| Speed | 4.4 GHz |
| Storage Interface | SATA 3.0 |
| Supported Serial Standards | RS-485, RS-232, RS-422 |
| USB | USB 3.0, USB 2.0 |
| USB 2.0 Count | 2 count |
| USB 3.0 Count | 4 count |
| Video Outputs | LVDS, VGA, DVI, DP (2) |
| Watchdog Timer | No |
