1620660
ActivePhoenix Contact
CIRCULAR CONNECTOR, PLUSCON SERIES, RECEPTACLE, 7, PIN, PANEL MOUNT ROHS COMPLIANT: YES
1620660
ActivePhoenix Contact
CIRCULAR CONNECTOR, PLUSCON SERIES, RECEPTACLE, 7, PIN, PANEL MOUNT ROHS COMPLIANT: YES
Description
General part information
1620660

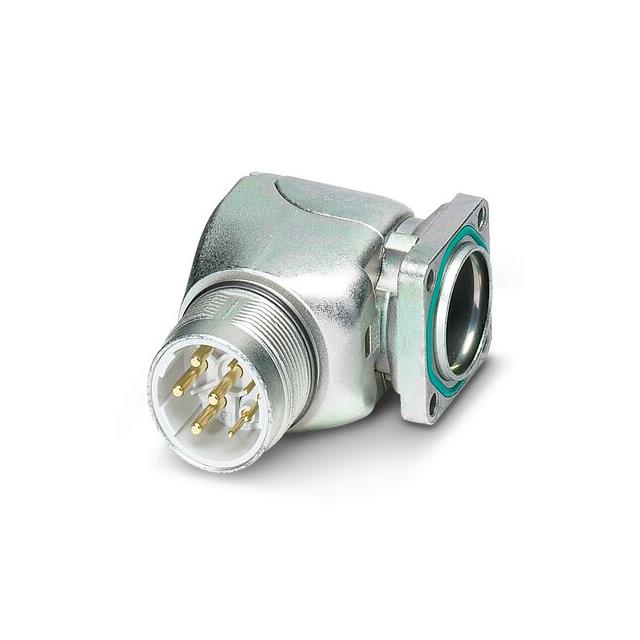

8 (4 + 3 Power + PE) Position Circular Connector Receptacle Housing Panel Mount, Right Angle Backshell, Rotatable
Technical Specifications
Parameters and characteristics for this part
| Specification | 1620660 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 1 mm |
| Contact Size (Power) | 2 mm |
| Contact Type | Crimp |
| Fastening Type | Threaded |
| Features | Rotatable, Backshell |
| Housing Color | Silver |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount, Right Angle |
| Note | Contacts Not Included |
| Number of Positions | 8 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | N (Normal) |
| Position Types | PE, Power |
| Shell Material | Metal |
| Shell Size - Insert | M23-8 |
| Shielding | Shielded |
| Type | For Male Pins |
