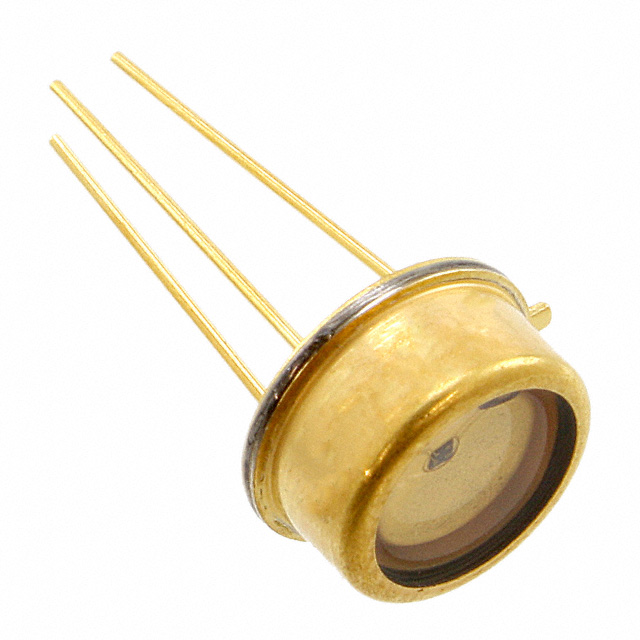

OD-110W

Active

Opto Diode Corp

EMITTER IR 850NM 500MA TO-39

Search across all available documentation for this part.

Active

Opto Diode Corp

EMITTER IR 850NM 500MA TO-39

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 850nm 1.7V 500mA 110° TO-205AD, TO-39-3 Metal Can

Technical documentation and resources

Part	Orientation	Voltage - Forward (Vf) (Typ)	Package / Case	Current - DC Forward (If) (Max) [Max]	Wavelength	Viewing Angle	Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
Opto Diode Corp OD-110L	Top View	1.7 V	TO-205AD, TO-39-3 Metal Can	500 mA	850 nm	7 °	Infrared (IR)	Through Hole	-40 °C	100 °C
Opto Diode Corp OD-110W	Top View	1.7 V	TO-205AD, TO-39-3 Metal Can	500 mA	850 nm	110 °	Infrared (IR)	Through Hole	-40 °C	100 °C
