R5F521A6BDFM#V0

Active

Renesas Electronics Corporation

MICROCONTROLLER WITH 24-BIT ΔΣ A/D CONVERTER FOR MEASURING INSTRUMENTS, INCLUDING SMART METERS

Find alt

Alpha

R5F521A6BDFM#V0

Active

Renesas Electronics Corporation

MICROCONTROLLER WITH 24-BIT ΔΣ A/D CONVERTER FOR MEASURING INSTRUMENTS, INCLUDING SMART METERS

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

RX200 Series

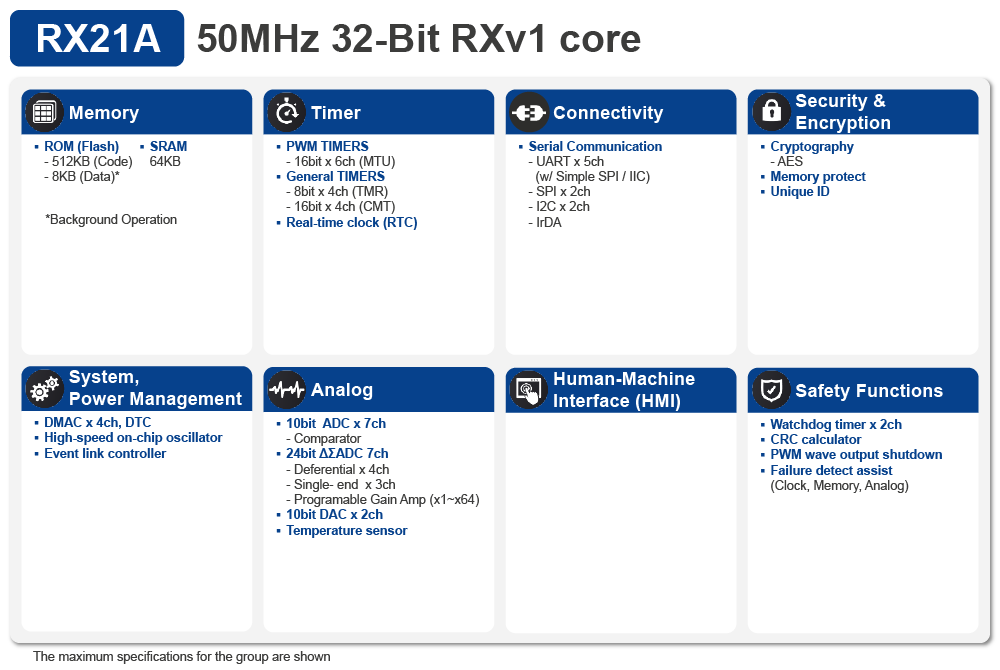

The RX21A group is the product that 24-bit Delta-sigma ADC is built in for measuring instruments such as a smart meter. PGA (Programmable Gain Amp) is built in Delta-sigma ADC, which is possible to amplify analog signal at most 64 times. The RX21A group has peripheral functions with special features, such as RTC which enables Time capture on event-signal input through external pins and DEU (Data Encryption Unit) which enables to use Encryption/decryption functions of the AES standard.

Technical Specifications

Parameters and characteristics for this part

Specification	R5F521A6BDFM#V0

A/D Channels	4 count, 3 count
A/D Resolution (bits)	10 bit, 24 bit
Connectivity	SCI, SPI, IrDA, I2C
Core Processor	RX
Core Size (Bit Width)	32 Bit
EEPROM Size (Depth)	8 K
EEPROM Size (Width)	8 bit
Mounting Type	Surface Mount
Number of I/O	38
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal
Package / Case	64-LQFP
Package Length	10 mm
Package Name	64-LFQFP
Package Width	10 mm
Peripherals	WDT, DMA, LVD, PWM, POR
Program Memory Depth	256 K
Program Memory Size	256 KB
Program Memory Type	FLASH
Program Memory Width	8 bit
RAM Size Depth	32 K
RAM Size Width	8 bit
Speed	50 MHz
Voltage - Supply (Vcc/Vdd) Maximum	3.6 V
Voltage - Supply (Vcc/Vdd) Minimum	1.8 V

RX200 Series

...

Part	RAM Size Depth	RAM Size Width	EEPROM Size (Width)	EEPROM Size (Depth)	Core Processor	Operating Temperature (Min)	Operating Temperature (Max)	Program Memory Width	Program Memory Size	Program Memory Depth	Number of I/O	Oscillator Type	Connectivity	Speed	Package / Case	Core Size (Bit Width)	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Package Width	Package Name	Package Length	Peripherals	Mounting Type	Program Memory Type	A/D Channels	D/A Resolution (bits)	D/A Channels	A/D Resolution (bits)	Program Memory Depth (128KB)	Program Memory Size	Program Memory Width (128KB)
Renesas Electronics Corporation R5F526TFBDFP#10	64 K	8 bit	8 bit	16 K	RXv3	-40 °C	85 °C	8 bit	512 KB	512 K	82	Internal	CANbus I2C SCI SPI UART USART	120 MHz	100-LQFP	32 Bit	2.7 V	5.5 V	14 mm	100-LFQFP	14 mm	DMA LVD POR PWM WDT	Surface Mount	FLASH	22 count	12 bit	2 count	12 bit
Renesas Electronics Corporation R5F526TFDDFP#50	64 K	8 bit	8 bit	16 K	RXv3	-40 °C	85 °C	8 bit	512 KB	512 K	82	Internal	CANbus I2C SCI SPI UART USART	120 MHz	100-LQFP	32 Bit	2.7 V	5.5 V	14 mm	100-LFQFP	14 mm	DMA LVD POR PWM WDT	Surface Mount	FLASH	22 count	12 bit	2 count	12 bit
Renesas Electronics Corporation R5F526TBDDFN#50	64 K	8 bit	8 bit	16 K	RXv3	-40 °C	85 °C	8 bit	256 KB	256 K	62	Internal	CANbus I2C SCI SPI UART USART	120 MHz	80-LQFP	32 Bit	2.7 V	5.5 V	12 mm	80-LFQFP	12 mm	DMA LVD POR PWM WDT	Surface Mount	FLASH	19 count	12 bit	2 count	12 bit
Renesas Electronics Corporation R5F526TFCGFL#50	64 K	8 bit	8 bit	16 K	RXv3	-40 °C	105 °C	8 bit	512 KB	512 K	37	Internal	CANbus I2C SCI SPI UART USART	120 MHz	48-LQFP	32 Bit	2.7 V	5.5 V	7 mm	48-LFQFP	7 mm	DMA LVD POR PWM WDT	Surface Mount	FLASH	10 count	12 bit	2 count	12 bit
Renesas Electronics Corporation R5F526T8ADFM#10	48 K	8 bit	8 bit	16 K	RXv3	-40 °C	85 °C				49	Internal	CANbus I2C SCI SPI UART USART	120 MHz	64-LQFP	32 Bit	2.7 V	5.5 V	10 mm	64-LFQFP	10 mm	DMA LVD POR PWM WDT	Surface Mount	FLASH	15 count	12 bit	2 count	12 bit	128 K	128KB	8
Renesas Electronics Corporation R5F526T9BDFL#50	64 K	8 bit	8 bit	16 K	RXv3	-40 °C	85 °C				37	Internal	CANbus I2C SCI SPI UART USART	120 MHz	48-LQFP	32 Bit	2.7 V	5.5 V	7 mm	48-LFQFP	7 mm	DMA LVD POR PWM WDT	Surface Mount	FLASH	10 count	12 bit	2 count	12 bit	128 K	128KB	8
Renesas Electronics Corporation R5F526TACGFM#30	48 K	8 bit	8 bit	16 K	RXv3	-40 °C	105 °C	8 bit	256 KB	256 K	49	Internal	CANbus I2C SCI SPI UART USART	120 MHz	64-LQFP	32 Bit	2.7 V	5.5 V	10 mm	64-LFQFP	10 mm	DMA LVD POR PWM WDT	Surface Mount	FLASH	15 count	12 bit	2 count	12 bit
Renesas Electronics Corporation R5F526TFCDFP#10	64 K	8 bit	8 bit	16 K	RXv3	-40 °C	85 °C	8 bit	512 KB	512 K	82	Internal	CANbus I2C SCI SPI UART USART	120 MHz	100-LQFP	32 Bit	2.7 V	5.5 V	14 mm	100-LFQFP	14 mm	DMA LVD POR PWM WDT	Surface Mount	FLASH	22 count	12 bit	2 count	12 bit
Renesas Electronics Corporation R5F526TFBGFL#50	64 K	8 bit	8 bit	16 K	RXv3	-40 °C	105 °C	8 bit	512 KB	512 K	37	Internal	CANbus I2C SCI SPI UART USART	120 MHz	48-LQFP	32 Bit	2.7 V	5.5 V	7 mm	48-LFQFP	7 mm	DMA LVD POR PWM WDT	Surface Mount	FLASH	10 count	12 bit	2 count	12 bit
Renesas Electronics Corporation R5F526TACDFM#10	48 K	8 bit	8 bit	16 K	RXv3	-40 °C	85 °C	8 bit	256 KB	256 K	49	Internal	CANbus I2C SCI SPI UART USART	120 MHz	64-LQFP	32 Bit	2.7 V	5.5 V	10 mm	64-LFQFP	10 mm	DMA LVD POR PWM WDT	Surface Mount	FLASH	15 count	12 bit	2 count	12 bit

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

RX21A Group Datasheet Rev.1.10

R5F521A6BDFM#V0 | Datasheet
