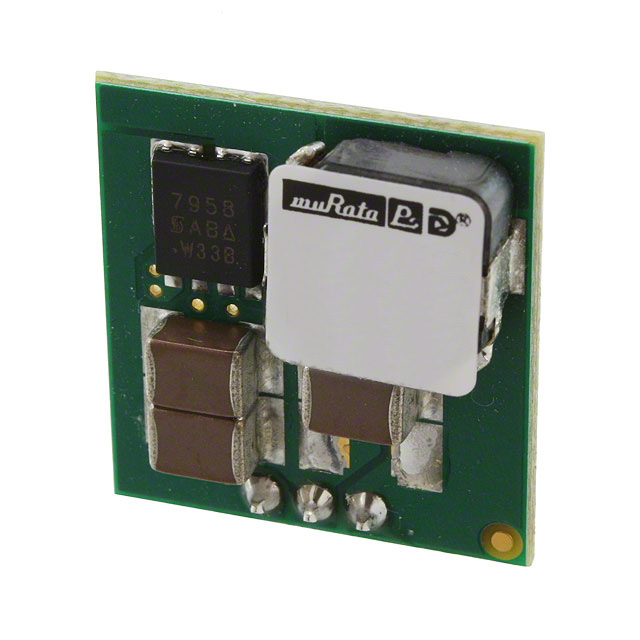

78SRH-5/2-C
ActiveDC/DC CONVERTER, STEP DOWN, ITE, 1 OUTPUT, 10 W, 5 V, 2 A
Deep-Dive with AI
Search across all available documentation for this part.
78SRH-5/2-C
ActiveDC/DC CONVERTER, STEP DOWN, ITE, 1 OUTPUT, 10 W, 5 V, 2 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 78SRH-5/2-C | 78SRH Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 2 A | 2 A |
| Efficiency | 95 % | 92 - 95 % |
| Features | OTP, SCP | OTP, SCP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 3-SIP Module | 3-SIP Module |
| Power (Watts) | 10 W | 7 - 10 W |
| Size / Dimension [x] | 21.6 mm | 21.6 mm |
| Size / Dimension [x] | 0.85 " | 0.85 " |
| Size / Dimension [y] | 20.3 mm | 20.3 mm |
| Size / Dimension [y] | 0.8 in | 0.8 in |
| Size / Dimension [z] | 0.28 " | 0.28 " |
| Size / Dimension [z] | 7.1 mm | 7.1 mm |
| Supplier Device Package | - | Module |
| Type | Linear Regulator Replacement | Linear Regulator Replacement |
| Voltage - Input (Max) [Max] | 32 V | 32 V |
| Voltage - Input (Min) [Min] | 8 V | 8 V |
| Voltage - Output 1 | 5 V | 3.3 - 5.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
78SRH Series
DC DC CONVERTER 5.25V
| Part | Current - Output (Max) [Max] | Number of Outputs | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Type | Supplier Device Package | Applications | Mounting Type | Voltage - Input (Min) [Min] | Voltage - Output 1 | Voltage - Input (Max) [Max] | Efficiency | Features | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. 78SRH-5.2/2-C | 2 A | 1 | 0.28 " | 7.1 mm | 20.3 mm | 0.8 in | 21.6 mm | 0.85 " | 3-SIP Module | -40 °C | 70 °C | Linear Regulator Replacement | Module | ITE (Commercial) | Through Hole | 8 V | 5.25 V | 32 V | |||
Murata Power Solutions Inc. 78SRH-3.3/2-C | 2 A | 1 | 0.28 " | 7.1 mm | 20.3 mm | 0.8 in | 21.6 mm | 0.85 " | 3-SIP Module | -40 °C | 70 °C | Linear Regulator Replacement | ITE (Commercial) | Through Hole | 8 V | 3.3 V | 32 V | 92 % | OTP, SCP | 7 W | |
Murata Power Solutions Inc. 78SRH-5/2-C | 2 A | 1 | 0.28 " | 7.1 mm | 20.3 mm | 0.8 in | 21.6 mm | 0.85 " | 3-SIP Module | -40 °C | 70 °C | Linear Regulator Replacement | ITE (Commercial) | Through Hole | 8 V | 5 V | 32 V | 95 % | OTP, SCP | 10 W | |
Murata Power Solutions Inc. 78SRH-5/2-C |
Description
General part information
78SRH Series
The 78SRH-5/2-C is a 1-output Non-isolated Horizontal DC to DC Converter with wide input voltage range. The 78SR 2 Amp series 10W step-down switching regulator is ultra high-efficiency, pin and size-compatible. There is no messy thermal grease, no mounting hardware and no external components are required for full operation. The higher efficiency ensures significantly lower heat generation and provides increased run time in battery-powered applications, making this regulator ideal for today's low power "green" applications.
