FMCA1561-24
ObsoleteFairview Microwave
COAX CBL BMA TO BMA 24"
FMCA1561-24
ObsoleteFairview Microwave
COAX CBL BMA TO BMA 24"
Description
General part information
FMCA1561-24

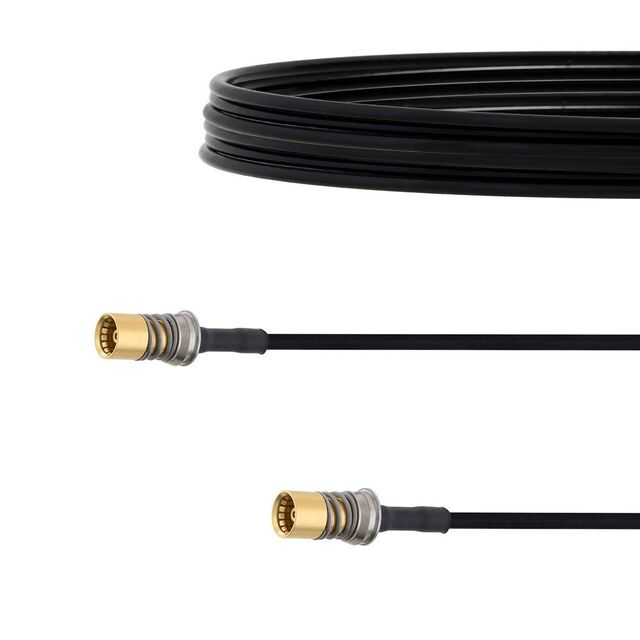

Cable Assembly Coaxial BMA to BMA 0.086" Semi-Rigid Cable 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA1561-24 |
|---|---|
| 1st Connector | BMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | BMA Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Diameter | 0.086 " |
| Cable Impedance | 50 Ohms |
| Cable Type | Rigid Cable, Semi, Semi-Rigid Cable |
| Cable Type Size | 0.086, 0.086 " |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 22 GHz |
| Length | 24 in |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | BMA |
