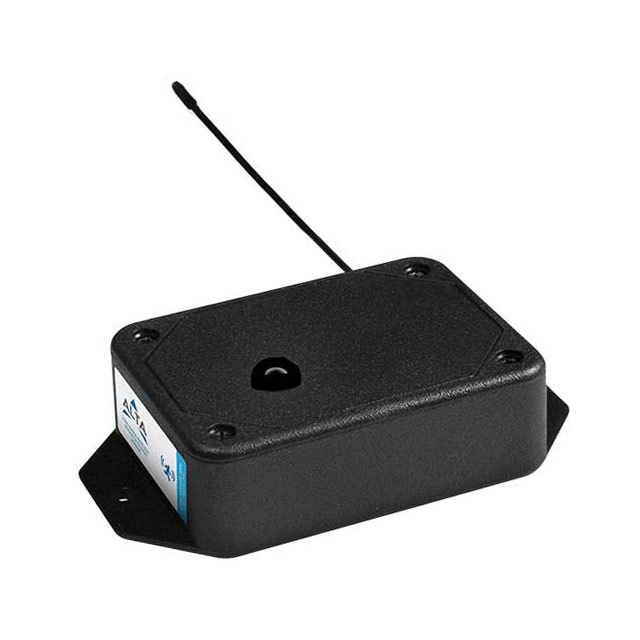

MNS2-9-W2-MS-IR

Active

Monnit Corporation

ALTA WIRELESS INFRARED MOTION SE

Search across all available documentation for this part.

Active

Monnit Corporation

ALTA WIRELESS INFRARED MOTION SE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Proximity/Occupancy Sensor Passive Infrared 1000 Square Feet RF Chassis Mount Black

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	MNS2-9-W2-MS-IR	MNS2 Series

Accessory Type	-	Wireless Relay (IoT Finished Device)
Color	Black	Black
Coverage	1000 Square Feet	1000 Square Feet
Element Type	-	K - Type
For Use With/Related Products	-	K-Type Probe Tips
Length - Lead Wire	-	1.53 - 1.83 m
Length - Lead Wire	-	5.02 - 72 '
Manual Override	False	False
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	1.81 mOhm	1.81 mOhm
Sensor Type	Passive Infrared	Passive Infrared
Temperature Range	-	400 °C
Temperature Range	-	-100 °C
Voltage - Supply [Max]	3.8 V	3.8 V
Voltage - Supply [Min]	2 V	2 V

-100℃~+400℃ TEMPERATURE SENSORS ROHS

Part	Element Type	Temperature Range [Max]	Temperature Range [Min]	Length - Lead Wire [x]	Length - Lead Wire [x]	For Use With/Related Products	Accessory Type	Output Type	Sensor Type	Coverage	Operating Temperature [Max]	Operating Temperature [Min]	Color	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]
Monnit Corporation MNS2-9-W2-TS-TC-KT	K - Type	400 °C	-100 °C	1.53 m	5.02 '
Monnit Corporation MNS2-9-W1-TS-TC-HW	K - Type	400 °C	-100 °C	1.83 m	72 in
Monnit Corporation MNS2-9-W2-TS-TC-KP						K-Type Probe Tips	Wireless Relay (IoT Finished Device)
Monnit Corporation MNS2-9-IN-TS-TC-KT	K - Type	400 °C	-100 °C	1.53 m	5.02 '
Monnit Corporation MNS2-9-W1-TS-TC-KT	K - Type	400 °C	-100 °C	1.53 m	5.02 '
Monnit Corporation MNS2-9-IN-TS-TC-KP						K-Type Probe Tips	Wireless Relay (IoT Finished Device)
Monnit Corporation MNS2-9-W2-MS-IR								1.81 mOhm	Passive Infrared	1000 Square Feet	85 °C	-40 °C	Black	Chassis Mount	3.8 V	2 V
Monnit Corporation MNS2-9-W1-TS-TC-KP						K-Type Probe Tips	Wireless Relay (IoT Finished Device)
Monnit Corporation MNS2-9-W2-TS-TC-HW	K - Type	400 °C	-100 °C	1.83 m	72 in
Monnit Corporation MNS2-9-IN-TS-TC-HW	K - Type	400 °C	-100 °C	1.83 m	72 in
