Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VSC7511XMY | VSC7511 Series |
|---|---|---|
| - | - | |
| Function | Ethernet Switch | Ethernet Switch |
| Interface | 2-Wire Serial, SPI, JTAG, UART | 2-Wire Serial, SPI, JTAG, UART |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 4 | 4 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |

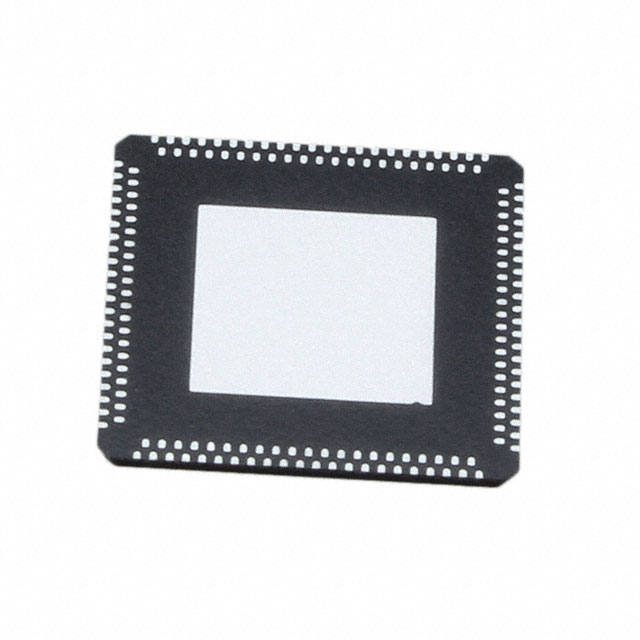

| Package / Case | 172-QFN Dual Rows, Exposed Pad | 172-QFN Dual Rows, Exposed Pad |
| Supplier Device Package | 172-QFN | 172-QFN |
| Voltage - Supply | 1.2 V | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 19.22 | |
| 25 | $ 16.02 | |||
| 100 | $ 15.47 | |||
| Microchip Direct | TRAY | 1 | $ 19.22 | |
| 25 | $ 16.02 | |||
| 100 | $ 14.57 | |||
| 1000 | $ 13.45 | |||
| 5000 | $ 12.76 | |||
VSC7511 Series
4 Port Unmanaged Industrial Ethernet Switch
| Part | Interface | Number of Circuits | Supplier Device Package | Function | Voltage - Supply | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|
Microchip Technology VSC7511XMY | |||||||||
Microchip Technology VSC7511XMY | 2-Wire Serial, JTAG, SPI, UART | 4 | 172-QFN | Ethernet Switch | 1.2 V | 125 °C | -40 °C | Surface Mount | 172-QFN Dual Rows, Exposed Pad |
Description
General part information
VSC7511 Series
Microchip's industrial Ethernet switch device delivers the industry’s lowest power Gigabit Ethernet (GbE) switching solution. The VSC7511 is a fully-integrated 4-port Gb Ethernet switch with four copper PHYs or four SGMIIs in a single package. The VSC7511 leverages SimpliPHY technology, resulting in the one of the most cost-effective and lowest power consumption devices in the industry. The single-chip solution utilizes the most advanced Energy Efficient Ethernet features for bringing low-power and high-performance solutions to market. The VSC7511 provides a rich set of unmanaged Ethernet switching features such as Layer-2 forwarding with basic VLAN and QoS processing, enabling the delivery of differentiated services. The VSC7511 contains an 8051 CPU for configuration of the switch.
A comprehensive application software package is provided for LED control, loop indication, device overheat protection, and other enhanced functions.
[Supported Ethernet Software Options](https://www.microchip.com/design-centers/ethernet/software)
