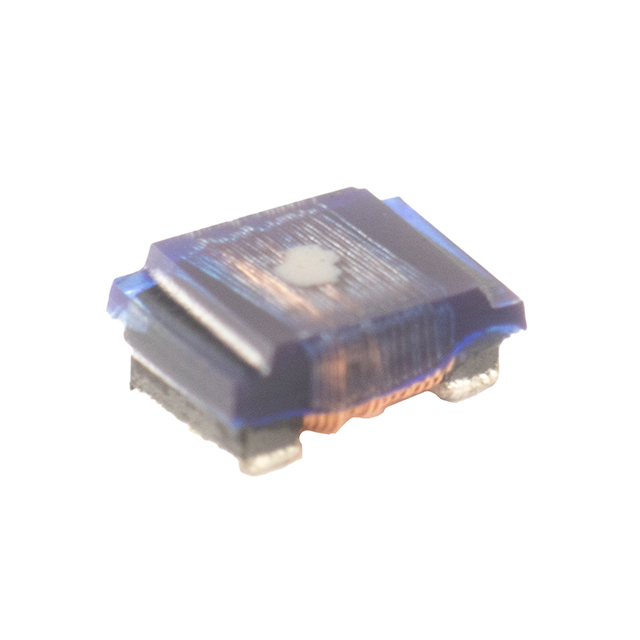

LT05-330K-RC
ActiveAllied Components International
33UH +/-10% LOW PROFILE INDUCTOR
LT05-330K-RC
ActiveAllied Components International
33UH +/-10% LOW PROFILE INDUCTOR
Description
General part information
LT05-330K-RC
33 µH Unshielded Inductor 13.5Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | LT05-330K-RC |
|---|---|
| Current - Saturation (Isat) | 200 mA |
| DC Resistance (DCR) (Max) | 13.5 Ohm |
| Frequency - Self Resonant | 16 MHz |
| Height - Seated (Max) | 0.041 in |
| Inductance | 33 µH |
| Inductance Frequency - Test | 2.52 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Nonstandard |
| Q | 10 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.094 in |
| Size / Dimension Width | 0.073 in |
| Tolerance | 10 % |
