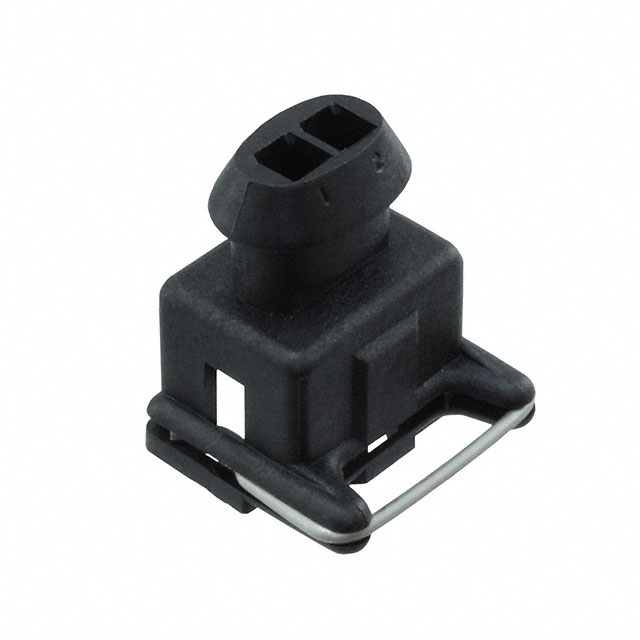

828657-3

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 2POS 5.00MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 2POS 5.00MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	828657-3	828657 Series

Color	Black	Green, Black, Brown
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Holder	Latch Holder
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	2	2
Number of Rows	1	1
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in

CONN RCPT HSG 2POS 5.00MM

Part	Pitch [x]	Pitch [x]	Contact Termination	Number of Rows	Color	Contact Type	Mounting Type	Note	Connector Type	Fastening Type	Number of Positions	Insulation Material
TE Connectivity AMP Connectors 828657-6	5 mm	0.197 in	Crimp	1	Green	Female Socket	Free Hanging (In-Line)	Contacts Not Included	Receptacle	Latch Holder	2
TE Connectivity AMP Connectors 828657-3	5 mm	0.197 in	Crimp	1	Black	Female Socket	Free Hanging (In-Line)	Contacts Not Included	Receptacle	Latch Holder	2	Polyamide (PA66), Nylon 6/6, Glass Filled
TE Connectivity AMP Connectors 828657-4	5 mm	0.197 in	Crimp	1	Brown	Female Socket	Free Hanging (In-Line)	Contacts Not Included	Receptacle	Latch Holder	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Receptacle Black 0.197" (5.00mm)
