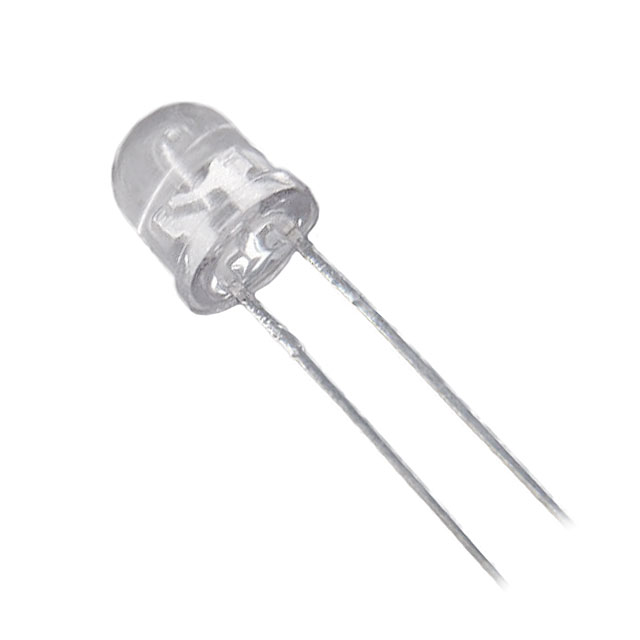

C513A-MSN-CW0Z0232
ActiveLED UNI-COLOR WHITE 2-PIN T-1 3/4 AMMO
Deep-Dive with AI
Search across all available documentation for this part.
C513A-MSN-CW0Z0232
ActiveLED UNI-COLOR WHITE 2-PIN T-1 3/4 AMMO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | C513A-MSN-CW0Z0232 | C513A Series |
|---|---|---|
| Color | White, Warm | White, Warm, Cool |
| Configuration | Standard | Standard |
| Current - Test | 20 mA | 20 mA |
| Height (Max) | - | 7.6 mm |
| Height (Max) [Max] [z] | 9.1 mm | 9.1 - 12.2 mm |
| Lens Color | Colorless | Colorless |
| Lens Size | T-1 3/4 | T-1 3/4 |
| Lens Size | 5 mm | 5 mm |
| Lens Size | - | 5 mm Dia |
| Lens Style | Round with Domed Top | Round with Domed Top |
| Lens Transparency | Clear | Clear |
| Millicandela Rating | 7500 mcd | 5165 - 8930 mcd |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Supplier Device Package | 5 mm | 5 mm |
| Supplier Device Package | - | 5 mm |
| Viewing Angle | 55 ° | 55 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V | 3.2 V |
| Wavelength - Dominant | 2800 K | 2800 K |
| Wavelength - Dominant | - | 9000 K |
C513A Series
LED UNI-COLOR WHITE 2-PIN T-1 3/4 AMMO
| Part | Lens Style | Height (Max) [Max] [z] | Mounting Type | Wavelength - Dominant | Configuration | Viewing Angle | Color | Lens Color | Lens Size | Lens Size | Voltage - Forward (Vf) (Typ) | Supplier Device Package | Lens Transparency | Current - Test | Package / Case | Millicandela Rating | Wavelength - Dominant [custom] | Lens Size [diameter] | Supplier Device Package [diameter] | Height (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cree LED C513A-MSN-CX0Z0512 | Round with Domed Top | 9.1 mm | Through Hole | 2800 K | Standard | 55 ° | Warm, White | Colorless | T-1 3/4 | 5 mm | 3.2 V | 5 mm | Clear | 20 mA | Radial | 8090 mcd | ||||
Cree LED C513A-WSS-CY0Z0342 | Round with Domed Top | 12.2 mm | Through Hole | Standard | 55 ° | Cool, White | 3.2 V | 20 mA | Radial | 8930 mcd | 9000 K | 5 mm Dia | 5 mm | |||||||
Cree LED C513A-MSN-CV0Y0132 | Round with Domed Top | Through Hole | 2800 K | Standard | 55 ° | Warm, White | Colorless | 3.2 V | Clear | 20 mA | Radial | 5165 mcd | 5 mm Dia | 5 mm | 7.6 mm | |||||
Cree LED C513A-MSS-CX0Z0232 | Round with Domed Top | 12.2 mm | Through Hole | 2800 K | Standard | 55 ° | Warm, White | Colorless | T-1 3/4 | 5 mm | 3.2 V | 5 mm | Clear | 20 mA | Radial | 8090 mcd | ||||
Cree LED C513A-MSN-CX0Z0231 | Round with Domed Top | 9.1 mm | Through Hole | 2800 K | Standard | 55 ° | Warm, White | Colorless | T-1 3/4 | 5 mm | 3.2 V | 5 mm | Clear | 20 mA | Radial | 8090 mcd | ||||
Cree LED C513A-WSN-CX0Z0231 | Round with Domed Top | 9.1 mm | Through Hole | Standard | 55 ° | Cool, White | Colorless | 3.2 V | Clear | 20 mA | Radial | 8090 mcd | 9000 K | 5 mm Dia | 5 mm | |||||
Cree LED C513A-WSS-CY0Z0231 | Round with Domed Top | 12.2 mm | Through Hole | Standard | 55 ° | Cool, White | 3.2 V | 20 mA | Radial | 8930 mcd | 9000 K | 5 mm Dia | 5 mm | |||||||
Cree LED C513A-WSS-CW0Z0231 | Round with Domed Top | 12.2 mm | Through Hole | Standard | 55 ° | Cool, White | Colorless | 3.2 V | Clear | 20 mA | Radial | 7500 mcd | 9000 K | 5 mm Dia | 5 mm | |||||
Cree LED C513A-MSS-CV0Y0511 | Round with Domed Top | 12.2 mm | Through Hole | 2800 K | Standard | 55 ° | Warm, White | Colorless | 3.2 V | Clear | 20 mA | Radial | 5165 mcd | 5 mm Dia | 5 mm | |||||
Cree LED C513A-WSN-CY0Z0231 | Round with Domed Top | 9.1 mm | Through Hole | Standard | 55 ° | Cool, White | 3.2 V | 20 mA | Radial | 8930 mcd | 9000 K | 5 mm Dia | 5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
C513A Series
Round LEDs offer superior light output for excellent readability in sunlight and dependable performance. They provide extremely stable light output over long periods of time.Size (mm): 5 • Color Temperatures: Cool White : Min . (4600K) / Typical (9000K) Warm White : Min . (2500K) / Typical (2800K) • Luminous Intensity (mcd) C513A-WSS/WSN:(3000-12000) C513A-MSS/MSN:(3000-12000) • CRI: Typical CRI for Cool White is 75 Typical C
