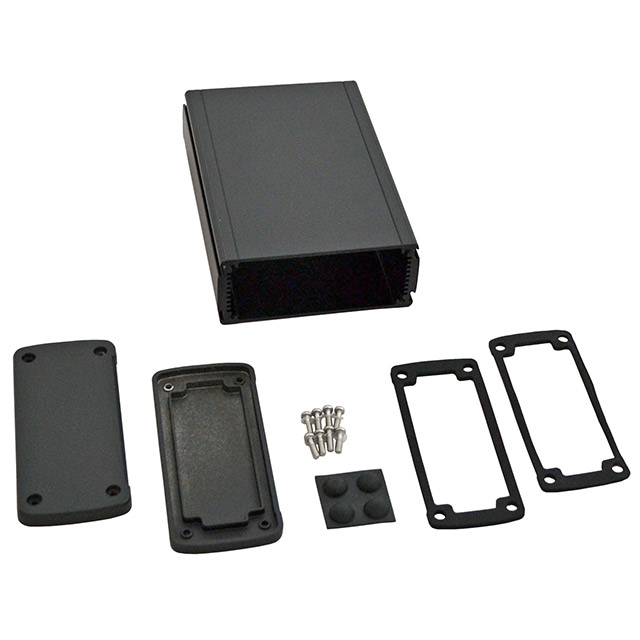

EXN-23358-BK

Active

BUD INDUSTRIES

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, 51.6 MM, 169 MM, 115.1 MM, IP66

Search across all available documentation for this part.

Active

BUD INDUSTRIES

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, 51.6 MM, 169 MM, 115.1 MM, IP66

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EXN-23358-BK	EXN-23358 Series

Area (L x W)	194 cm˛	194 cm˛
Area (L x W)	30 in˛	30 in˛
Color	Black	Black, Gold
Container Type	Box	Box
Design	End Panel(s)	End Panel(s)
Features	Card Guides, Sealing Gaskets	Card Guides, Sealing Gaskets
Height [z]	51.6 mm	51.6 mm
Height [z]	2.031 in	2.031 in
Material	Metal, Aluminum	Metal, Aluminum, Polycarbonate Panels, Aluminum with Plastic
Material Flammability Rating	-	UL94 V-0
Ratings	IP66	IP66
Size / Dimension [x]	169 mm	169 mm
Size / Dimension [x]	6.654 "	6.654 "
Size / Dimension [y]	115.1 mm	115.1 mm
Size / Dimension [y]	4.531 in	4.531 in
Thickness	0.091 in	0.091 in
Thickness	2.3 mm	2.3 mm
Weight	453.59 g	403.7 - 453.59 g
Weight	1 lbs	0.89 - 1 lbs

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, 51.6 MM, 169 MM, 115.1 MM, IP66

Part	Weight	Weight	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Thickness	Thickness	Container Type	Features	Material	Height [z]	Height [z]	Ratings	Design	Area (L x W)	Area (L x W)	Material Flammability Rating
BUD INDUSTRIES EXN-23358-GD	453.59 g	1 lbs	Black, Gold	169 mm	115.1 mm	4.531 in	6.654 "	0.091 in	2.3 mm	Box	Card Guides, Sealing Gaskets	Aluminum, Metal	51.6 mm	2.031 in	IP66	End Panel(s)	194 cm˛	30 in˛
BUD INDUSTRIES EXN-23358-BK	453.59 g	1 lbs	Black	169 mm	115.1 mm	4.531 in	6.654 "	0.091 in	2.3 mm	Box	Card Guides, Sealing Gaskets	Aluminum, Metal	51.6 mm	2.031 in	IP66	End Panel(s)	194 cm˛	30 in˛
BUD INDUSTRIES EXN-23358-BKP	403.7 g	0.89 lb	Black	169 mm	115.1 mm	4.531 in	6.654 "	0.091 in	2.3 mm	Box	Card Guides, Sealing Gaskets	Aluminum with Plastic, Metal, Polycarbonate Panels	51.6 mm	2.031 in	IP66	End Panel(s)	194 cm˛	30 in˛	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Metal, Aluminum Black End Panel(s) 6.654" L x 4.531" W (169.00mm x 115.10mm) X 2.031" (51.60mm)
