Description
General part information

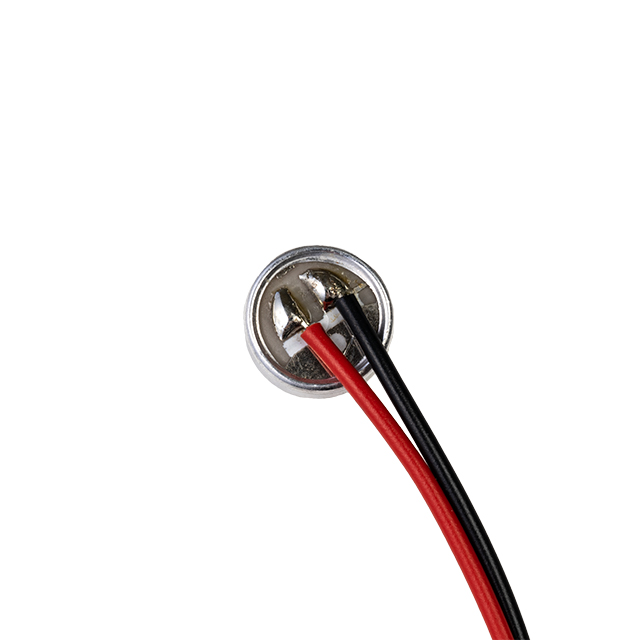

REM54F60ASSY-NL
20 Hz ~ 20 kHz Analog Microphone Electret Condenser 1 V ~ 10 V Omnidirectional (-60dB ±3dB @ 100dB SPL) Wire Leads with Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | REM54F60ASSY-NL |
|---|---|
| Current - Supply | 450 µA |
| Direction | Omnidirectional |
| Frequency Range (Max) | 20 kHz |
| Frequency Range (Min) | 20 Hz |
| Height (Max) | 0.217 in |
| Impedance | 2.2 kOhms |
| Output Type | Analog |
| Port Location | Top |
| S/N Ratio | 60 dB |
| Sensitivity (Nominal) | -60 dB |
| Sensitivity Tolerance | 3 dB |
| Shape | Circular |
| Size / Dimension Diameter | 0.382 in |
| Termination | Wire Leads with Connector |
| Type | Electret Condenser |
| Voltage - Rated | 1.5 VDC |
| Voltage Range (Max) | 10 V |
| Voltage Range (Min) | 1 V |
