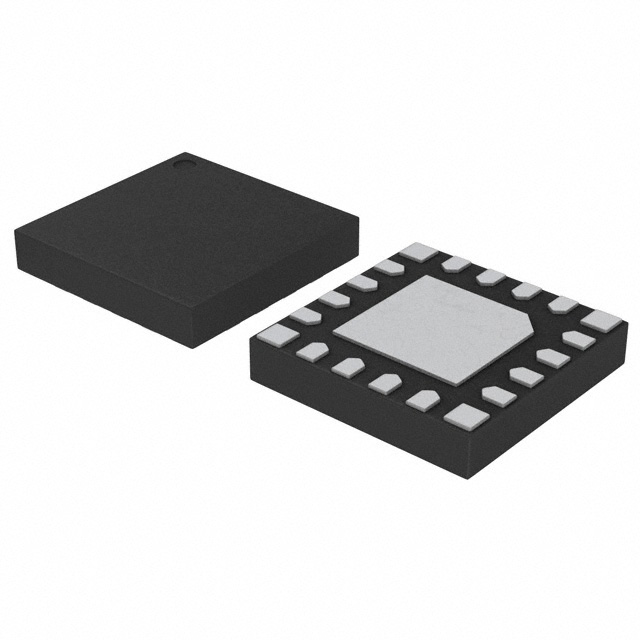

EFM8SB10F2G-A-QFN20R
ActiveSilicon Labs
IC MCU 8BIT 2KB FLASH 20QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EFM8SB10F2G-A-QFN20R
ActiveSilicon Labs
IC MCU 8BIT 2KB FLASH 20QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EFM8SB10F2G-A-QFN20R |
|---|---|
| Connectivity | I2C, SPI, UART/USART, SMBus |
| Core Processor | CIP-51 8051 |
| Core Size | 8-Bit |
| Data Converters | 12 b, 9 |
| Mounting Type | Surface Mount |
| Number of I/O | 16 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 20-UFQFN Exposed Pad |
| Program Memory Size | 2 KB |
| Program Memory Type | FLASH |
| RAM Size | 256 x 8 |
| Speed | 25 MHz |
| Supplier Device Package | 20-QFN (3x3) |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.12 | |
| 10 | $ 0.95 | |||
| 25 | $ 0.89 | |||
| 100 | $ 0.79 | |||
| 250 | $ 0.74 | |||
| 500 | $ 0.70 | |||
| Digi-Reel® | 1 | $ 1.12 | ||
| 10 | $ 0.95 | |||
| 25 | $ 0.89 | |||
| 100 | $ 0.79 | |||
| 250 | $ 0.74 | |||
| 500 | $ 0.70 | |||
| Tape & Reel (TR) | 1500 | $ 0.65 | ||
| 3000 | $ 0.63 | |||
| 4500 | $ 0.61 | |||
| 7500 | $ 0.60 | |||
| 10500 | $ 0.59 | |||
| 15000 | $ 0.58 | |||
Description
General part information
EFM8SB10F2G-A-QFN20R
CIP-51 8051 Sleepy Bee Microcontroller IC 8-Bit 25MHz 2KB (2K x 8) FLASH 20-QFN (3x3)
