R5F10RJAGFA#50

Active

Renesas Electronics Corporation

COMPACT LCD MICROCONTROLLERS WITH LOW POWER CONSUMPTION, SUITABLE FOR SMALL APPLIANCES AND HEALTHCARE DEVICES

Find alt

Alpha

R5F10RJAGFA#50

Active

Renesas Electronics Corporation

COMPACT LCD MICROCONTROLLERS WITH LOW POWER CONSUMPTION, SUITABLE FOR SMALL APPLIANCES AND HEALTHCARE DEVICES

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

RL78/L1x Series

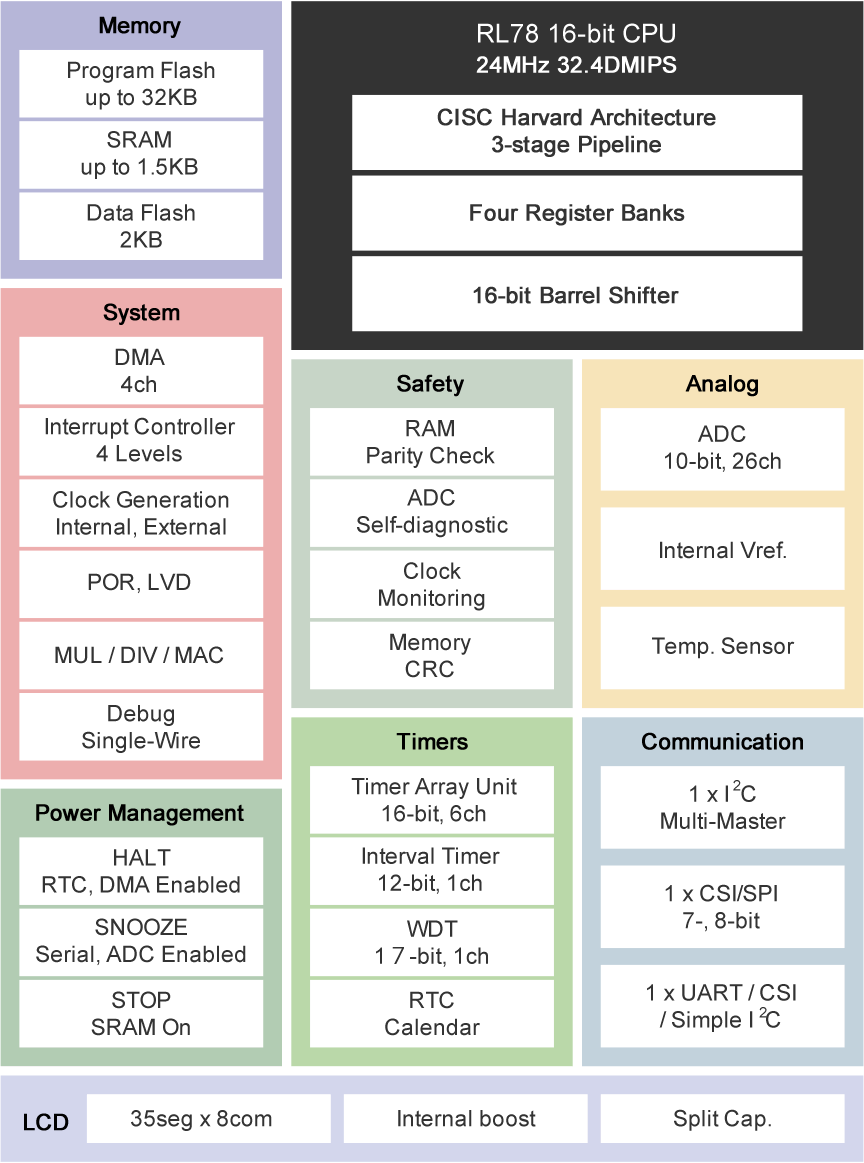

RL78/L12 microcontrollers have a built-in segment LCD driver. Three LCD driving voltage generation methods (external resistance division, capacitive split, and internal voltage boost) are supported, corresponding to a variety of segment LCD panels. They realize low current consumptionNote 1: external resistance division: 1.60 μANote 2, internal voltage boost: 1.19 μA, and capacitive split: 0.68 µA. With a lineup of 32 to 64-pin products supporting up to 280 segments, these microcontrollers are perfect for small devices with built-in LCD panels such as small appliances and healthcare devices.

Note 1: Current (typ.) at 1/3 bias, subclock operation, HALT mode, and RTC operation.

Note 2: Resistance value for external resistance division = 1000 kΩ.

Technical Specifications

Parameters and characteristics for this part

Specification	R5F10RJAGFA#50

A/D Channels	10 count
A/D Resolution (bits)	8 bit, 10 bit
Connectivity	CSI, USART, LINbus, UART, I2C
Core Processor	RL78
Core Size (Bit Width)	16 Bit
EEPROM Size (Depth)	2 K
EEPROM Size (Width)	8 bit
Mounting Type	Surface Mount
Number of I/O	37
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal
Package / Case	52-LQFP
Package Length	10 mm
Package Name	52-LQFP
Package Width	10 mm
Peripherals	WDT, DMA, LCD, POR, PWM, LVD
Program Memory Depth	16 K
Program Memory Size	16 KB
Program Memory Type	FLASH
Program Memory Width	8 bit
RAM Size Depth	1 K
RAM Size Width	8 bit
Speed	24 MHz
Voltage - Supply (Vcc/Vdd) Maximum	5.5 V
Voltage - Supply (Vcc/Vdd) Minimum	1.6 V

RL78/L1x Series

...

Part	Package Name	Oscillator Type	Program Memory Type	A/D Resolution (bits)	A/D Channels	Connectivity	Operating Temperature (Max)	Operating Temperature (Min)	Core Size (Bit Width)	RAM Size Depth	RAM Size Width	Program Memory Depth	Program Memory Width	Program Memory Size	Package Length	Package Width	Peripherals	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Number of I/O	Speed	Core Processor	Mounting Type
Renesas Electronics Corporation R5F11W67ASM#10	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	512	8 bit	4 K	8 bit	4 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W68ASM#50	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	1 K	8 bit	8 K	8 bit	8 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W68ASM#10	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	1 K	8 bit	8 K	8 bit	8 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W68DSM#30	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	1 K	8 bit	8 K	8 bit	8 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W67DSM#30	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	512	8 bit	4 K	8 bit	4 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W68DSM#10	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	1 K	8 bit	8 K	8 bit	8 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W68DSM#50	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	1 K	8 bit	8 K	8 bit	8 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W67DSM#50	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	512	8 bit	4 K	8 bit	4 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

RL78/L12 Data Sheet
