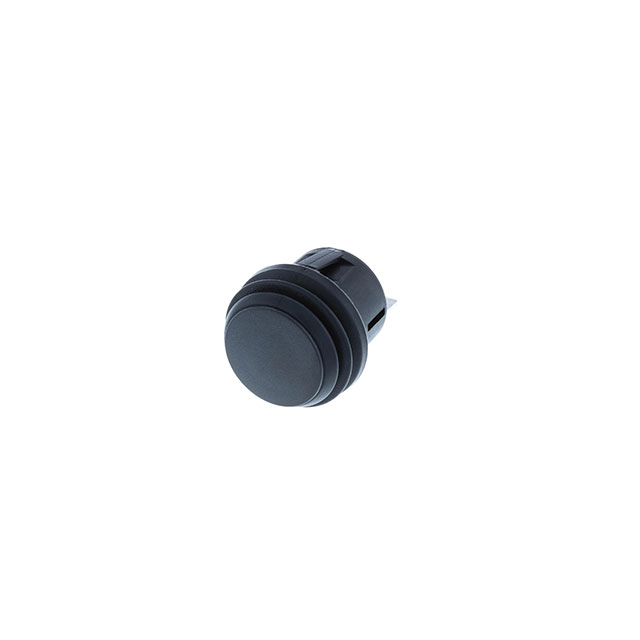

PB-1B-DC-2-B

Active

Switch Components

2P SPST OFF-(ON) - IP65

Search across all available documentation for this part.

Active

Switch Components

2P SPST OFF-(ON) - IP65

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PB-1B-DC-2-B	PB-1B-D Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button
Circuit	SPST-NO	SPST-NO
Color - Actuator/Cap	Black	Black, Red
Current Rating (Amps)	10 A, 20 A	10 - 20 A
Electrical Life	6000 Cycles	6000 Cycles
Illumination Type, Color	-	Red, LED
Illumination Voltage (Nominal)	-	12 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	20.2 mm	20.2 mm
Switch Function	Off-Mom	Off-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Type	Standard	Standard, Illuminated
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	14 V	14 V

2P SPST OFF-(ON) - IP65

Part	Actuator Type	Ingress Protection	Voltage Rating - AC	Switch Function	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Termination Style	Mechanical Life	Panel Cutout Dimensions [diameter]	Circuit	Mounting Type	Current Rating (Amps)	Type	Electrical Life	Voltage Rating - DC	Illumination Voltage (Nominal)	Illumination Type, Color
Switch Components PB-1B-DC-2-B	Button, Round	IP65 - Dust Tight, Water Resistant	125 V	Off-Mom	No Marking	-25 °C	85 °C	Black	Quick Connect - 0.187" (4.7mm)	10000 Steps	20.2 mm	SPST-NO	Panel Mount, Snap-In	10 A, 20 A	Standard	6000 Cycles	14 V
Switch Components PB-1B-DC-2-RIL	Button, Round	IP65 - Dust Tight, Water Resistant		Off-Mom	No Marking	-25 °C	85 °C	Red	Quick Connect - 0.187" (4.7mm)	10000 Steps	20.2 mm	SPST-NO	Panel Mount, Snap-In	20 A	Illuminated, Standard	6000 Cycles	14 V	12 VDC	LED, Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Snap-In
