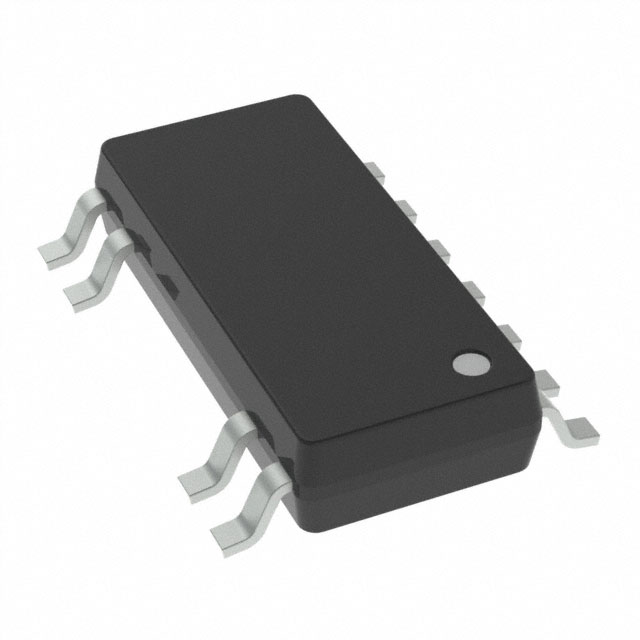

HF920GS
ActiveMONOLITHIC POWER SYSTEMS (MPS)
1000V FIXED FREQUENCY OFF-LINE R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HF920GS
ActiveMONOLITHIC POWER SYSTEMS (MPS)
1000V FIXED FREQUENCY OFF-LINE R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HF920GS |
|---|---|
| Control Features | Soft Start |
| Fault Protection | Over Temperature, Over Load, Over Voltage, Short Circuit |
| Frequency - Switching [Max] | 150 kHz |
| Internal Switch(s) | False |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 11 Leads |
| Package / Case | 0.154 in |
| Package / Case | 14-SOIC |
| Package / Case | 3.9 mm |
| Power (Watts) | 10 W |
| Supplier Device Package | 14-SOIC-11 |
| Topology | Flyback |
| Voltage - Breakdown | 900 V |
| Voltage - Supply (Vcc/Vdd) [Max] | 24 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
HF920GS
Converter Offline Flyback Topology Up to 150kHz 14-SOIC-11
