Description
General part information

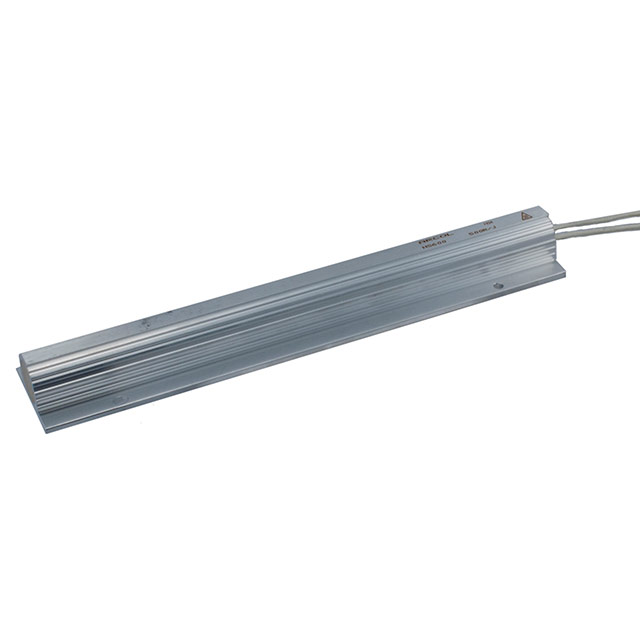

HS600 500R J
500 Ohms ±5% 600W Wirewound Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | HS600 500R J |
|---|---|
| Coating | Aluminum |
| Composition | Wirewound |
| Height - Seated (Max) | 1.181 in |
| Housing Type | Aluminum |
| Lead Style | Wire Leads |
| Mounting Feature | Flanges |
| Package / Case | Rectangular Case, Radial |
| Power (Watts) | 600 W |
| Resistance | 500 Ohm |
| Size / Dimension Length | 11.89 in |
| Size / Dimension Width | 2.185 in |
| Temperature Coefficient | 150 ppm/¯C |
| Tolerance | 5 % |
