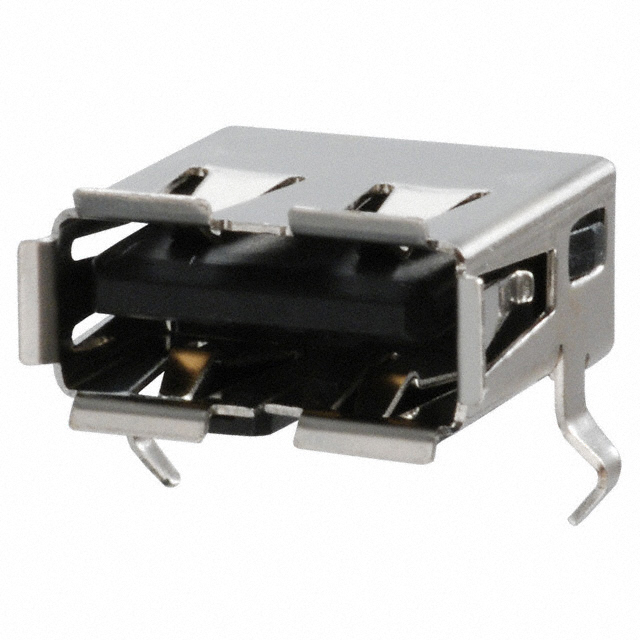

AU-Y1006-2-R
ObsoleteAssmann WSW Components
CONN RCPT USB2.0 TYPEA 4P SMD RA
AU-Y1006-2-R
ObsoleteAssmann WSW Components
CONN RCPT USB2.0 TYPEA 4P SMD RA
Description
General part information
AU-Y1006-2-R
USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Surface Mount, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | AU-Y1006-2-R |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Current Rating | 1.5 A |
| Features | Board Lock |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 1500 cycles |
| Mounting Feature | Horizontal |
| Mounting Type | Right Angle, Surface Mount |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Shell/Shielding Material | Brass |
| Specifications | USB 2.0 |
| Termination | Solder |
