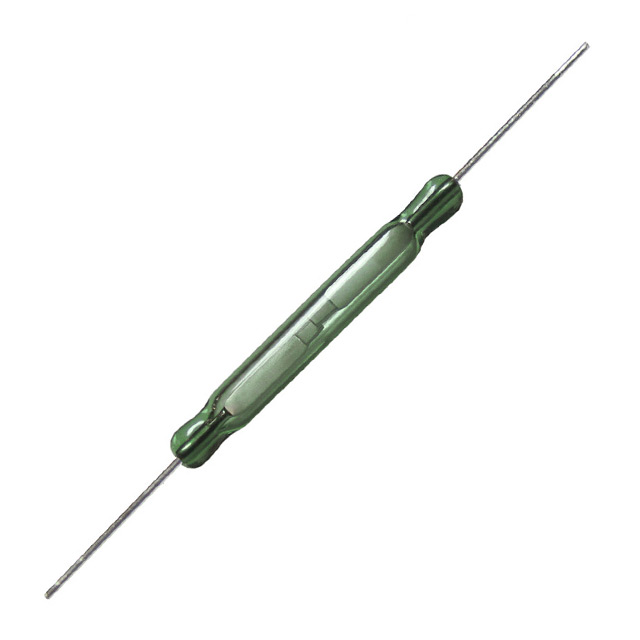

RI-46GP2530
ActiveComus International
SWITCH REED SPST-NO 1A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RI-46GP2530 |
|---|---|
| Capacitance | 0.2 pF |
| Circuit | SPST-NO |
| Current - Switching | 1 A |
| Length - Overall | 54.79 mm |
| Length - Overall | 2.157 " |
| Mounting Type | Through Hole |
| Operate Range [Max] | 30 AT |
| Operate Range [Min] | 25 |
| Operate Time | 0.35 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Power - Rated | 40 W |
| Release Time | 0.03 ms |
| Size - Body [diameter] | 0.106 in |
| Size - Body [diameter] | 2.7 mm |
| Size - Body [x] | 20.5 mm |
| Size - Body [x] | 0.807 " |
| Termination Style | Axial |
| Type | Glass Body Reed |
| Voltage - Switching DC | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.99 | |
| 10 | $ 0.86 | |||
| 25 | $ 0.82 | |||
| 100 | $ 0.75 | |||
| 250 | $ 0.71 | |||
| 500 | $ 0.68 | |||
| 2000 | $ 0.62 | |||
| 4000 | $ 0.59 | |||
| 6000 | $ 0.58 | |||
Description
General part information
RI-46GP Series
Glass Body Reed Switch SPST-NO 25 ~ 30AT Operate Range 40W 1A (AC/DC) 250 V Through Hole
