0895060.T
ActiveLITTELFUSE
FUSE - LP JCASE 58V 60A 10 PC/ BOX ROHS COMPLIANT: YES
0895060.T
ActiveLITTELFUSE
FUSE - LP JCASE 58V 60A 10 PC/ BOX ROHS COMPLIANT: YES
Description
General part information
0895060.T

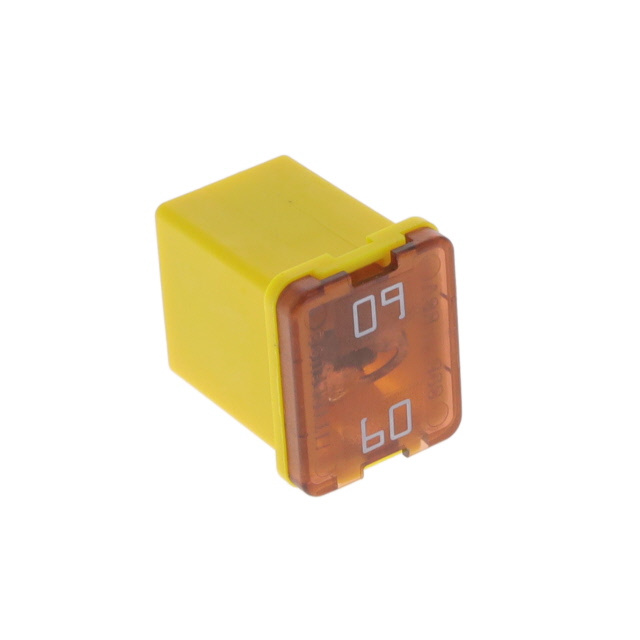

60 A AC 58 V DC Fuse Automotive Requires Holder Auto Link
Technical Specifications
Parameters and characteristics for this part
| Specification | 0895060.T |
|---|---|
| Breaking Capacity | 1 kA |
| Color | Yellow |
| Current Rating | 60 A |
| DC Cold Resistance | 0.00083 Ohms |
| Fuse Type | Automotive |
| Melting I²t | 9600 |
| Mounting Type | Requires Holder |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Auto Link |
| Size / Dimension Height | 0.63 in |
| Size / Dimension Length | 0.571 in |
| Size / Dimension Width | 0.472 in |
| Voltage Rating - DC | 58 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
