Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2907642 | TMC 8 Series |
|---|---|---|
| Accessory Type | - | Shunt Trip |
| Actuator Type | Lever | Lever |
| Breaker Type | Thermal Magnetic | Thermal Magnetic |
| Current Rating (Amps) | 30 A | 3 - 32 A |
| For Use With/Related Products | - | TMC 8, Circuit Breaker |
| Mounting Type | DIN Rail | DIN Rail |
| Number of Poles | 1 | 1 - 3 |
| Voltage Rating - AC | 277 V | 277 - 480 V |
| Voltage Rating - DC | 60 VDC | 60 - 125 VDC |
TMC 8 Series

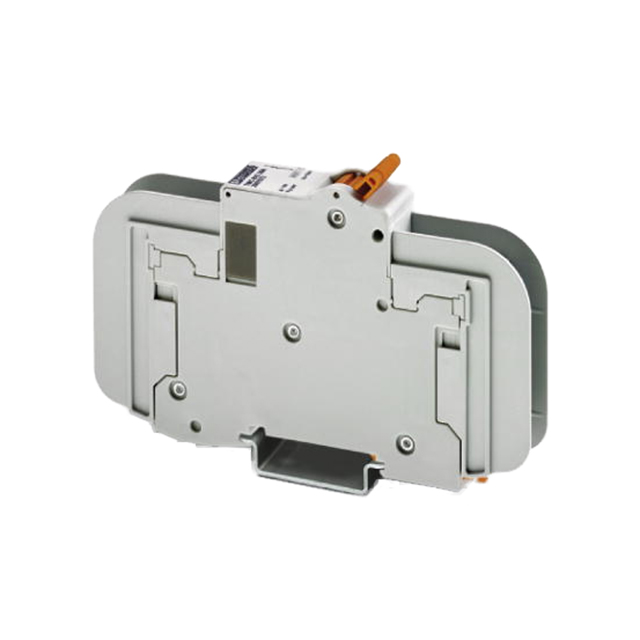

Circuit Breakers TMC 83D 03A
| Part | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Mounting Type | Voltage Rating - AC | Breaker Type | Number of Poles | For Use With/Related Products | Accessory Type |
|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2907642 | 30 A | 60 VDC | Lever | DIN Rail | 277 V | Thermal Magnetic | 1 | ||
Phoenix Contact 2907676 | 3 A | 125 VDC | Lever | DIN Rail | 480 V | Thermal Magnetic | 3 | ||
Phoenix Contact 2907590 | 8 A | 125 VDC | Lever | DIN Rail | 480 V | Thermal Magnetic | 2 | ||
Phoenix Contact 2908227 | Circuit Breaker, TMC 8 | Shunt Trip | |||||||
Phoenix Contact 2907668 | 32 A | 125 VDC | Lever | DIN Rail | 480 V | Thermal Magnetic | 2 | ||
Phoenix Contact 2907491 | 16 A | 60 VDC | Lever | DIN Rail | 277 V | Thermal Magnetic | 1 | ||
Phoenix Contact 2907592 | 12 A | 125 VDC | Lever | DIN Rail | 480 V | Thermal Magnetic | 2 | ||
Phoenix Contact 2907563 | 6 A | 60 VDC | Lever | DIN Rail | 277 V | Thermal Magnetic | 1 | ||
Phoenix Contact 2907683 | 8 A | 125 VDC | Lever | DIN Rail | 480 V | Thermal Magnetic | 3 | ||
Phoenix Contact 2907621 | 20 A | 125 VDC | Lever | DIN Rail | 480 V | Thermal Magnetic | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TMC 8 Series
Circuit Breakers TMC 83D 03A
Documents
Technical documentation and resources
