W6282-4SG-P-528

Active

Conxall/Switchcraft

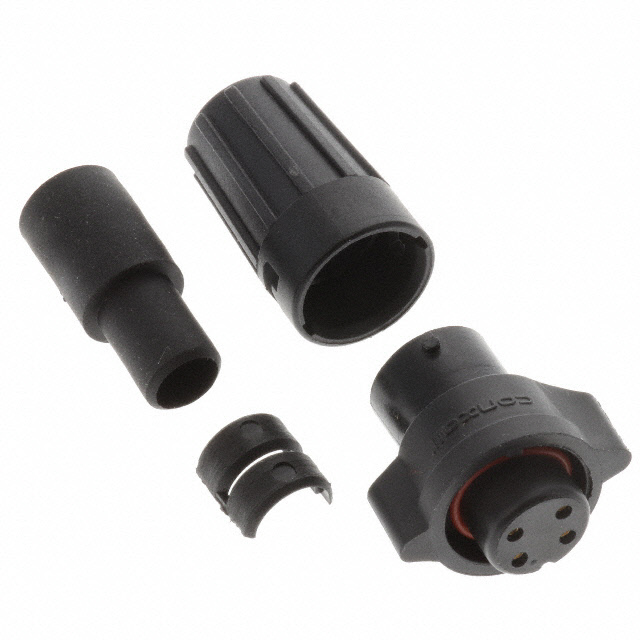

CONN PLUG FMALE 4POS SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 4POS SOLDER CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	W6282-4SG-P-528	W6282-4 Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening [custom]	6.6 mm, 7.11 mm	6.6 - 7.11 mm
Cable Opening [custom]	0.28 in, 0.26 in	0.26 - 0.28 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Plug, Male Pins, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Coupling Nut, UV Resistant, Backshell	Coupling Nut, UV Resistant, Backshell
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Thermoplastic	Thermoplastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	300 VAC	300 VAC

CONN PLUG MALE 4POS SOLDER CUP

Part	Orientation	Fastening Type	Connector Type	Mounting Type	Contact Finish - Mating	Contact Material	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Backshell Material, Plating	Shielding	Insert Material	Color	Cable Opening [custom]	Cable Opening [custom]	Current Rating (Amps)	Features	Applications	Ingress Protection	Number of Positions
Conxall/Switchcraft W6282-4PG-P-528	Keyed	Bayonet Lock	Male Pins, Plug	Free Hanging (In-Line)	Gold	Copper Alloy	Plastic	85 °C	-40 °C	300 VAC	Thermoplastic	Unshielded	Thermoplastic	Black	6.6 mm, 7.11 mm	0.26 in, 0.28 in	Varies by Wire Gauge	Backshell, Coupling Nut, UV Resistant	Automotive, Communication Systems, Instrumentation	IP66, IP67, IP68	4
Conxall/Switchcraft W6282-4SG-P-528	Keyed	Bayonet Lock	Female Sockets, Plug	Free Hanging (In-Line)	Gold	Copper Alloy	Plastic	85 °C	-40 °C	300 VAC	Thermoplastic	Unshielded	Thermoplastic	Black	6.6 mm, 7.11 mm	0.26 in, 0.28 in	Varies by Wire Gauge	Backshell, Coupling Nut, UV Resistant	Automotive, Communication Systems, Instrumentation	IP66, IP67, IP68	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 16.77

General part information

4 Position Circular Connector Plug, Female Sockets Solder Cup

Technical documentation and resources

No documents available
