FSOT2011E100R0KE
ActiveVishay Huntington Electric Inc.
RES CHAS MNT 100 OHM 10% 20W
FSOT2011E100R0KE
ActiveVishay Huntington Electric Inc.
RES CHAS MNT 100 OHM 10% 20W
Description
General part information
FSOT2011E100R0KE

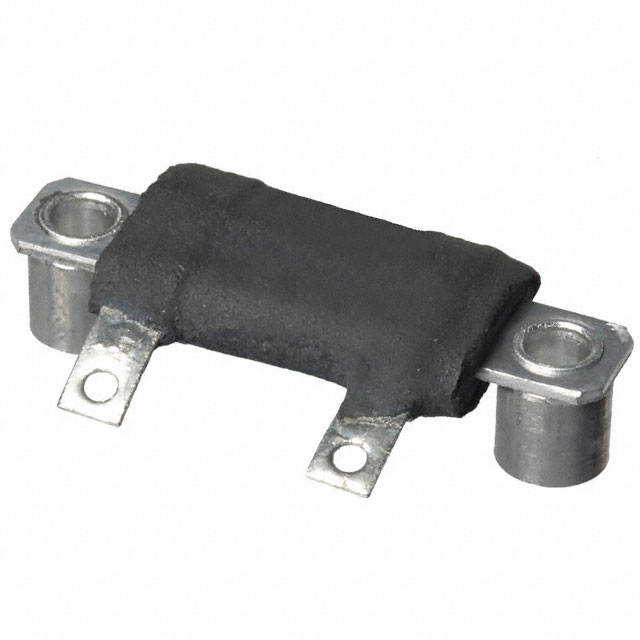

100 Ohms ±10% 20W Wirewound Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | FSOT2011E100R0KE |
|---|---|
| Coating | Silicone Coated |
| Composition | Wirewound |
| Height - Seated (Max) | 0.343 in |
| Housing Type | Silicone Coated |
| Lead Style | Solder Lugs |
| Mounting Feature | Flange Braces, Right Angle |
| Operating Temperature (Max) | 350 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Flat Oval, Radial |
| Power (Watts) | 20 W |
| Resistance | 100 Ohms |
| Size / Dimension Length | 2 in |
| Size / Dimension Width | 0.375 in |
| Temperature Coefficient | 260 ppm/°C |
| Temperature Coefficient (Highest) | 260 ppm/°C |
| Temperature Coefficient (Lowest) | -260 ppm/°C |
| Tolerance | 10 % |
