Description

General part information

71421 Series

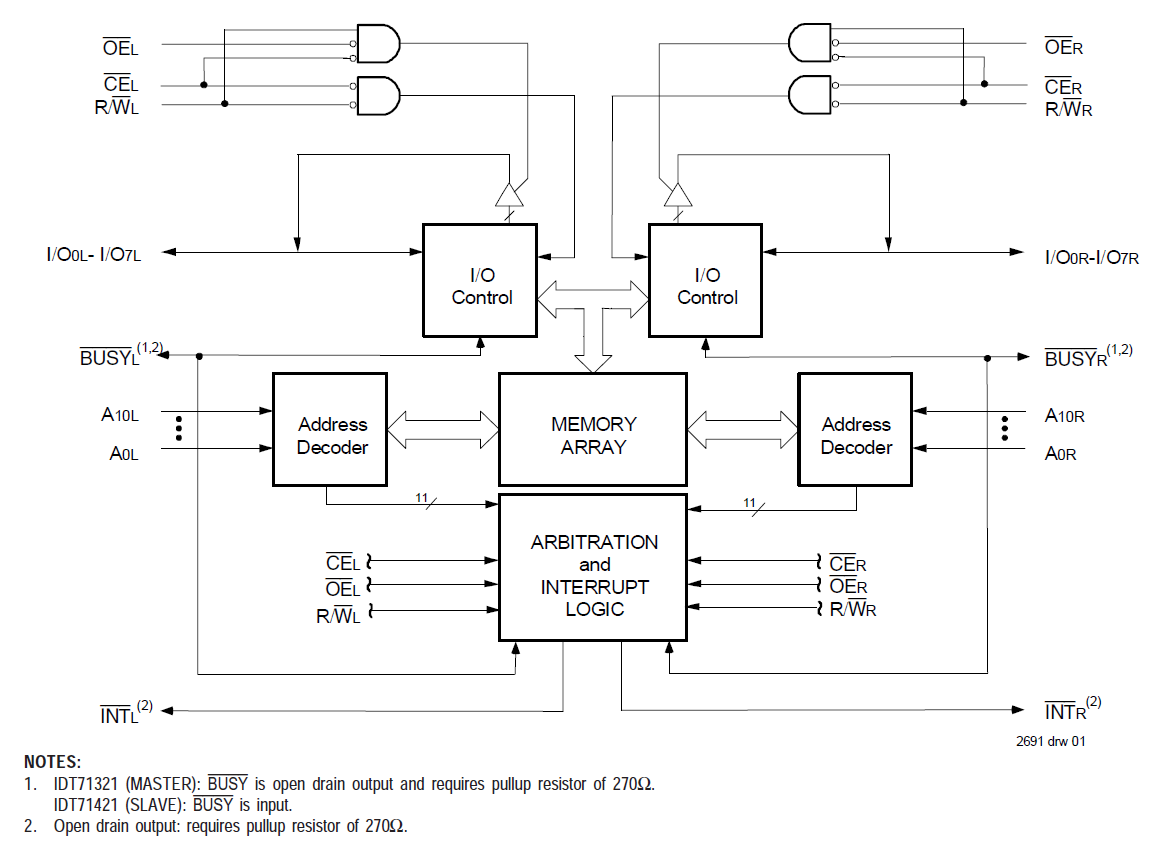

The 71421 is a high-speed 2K x 8 Dual-Port Static RAM with internal interrupt logic for interprocessor communications. It is designed to be used as a "SLAVE" Dual-Port RAM together with the 71321 "MASTER" Dual-Port in 16-bit-or-more word width systems which would result in full-speed, error free operation without the need for additional discrete logic. An automatic power down feature, controlled by CE, permits the on chip circuitry of each port to enter a very low standby power mode.

Technical Specifications

Parameters and characteristics for this part

Specification	71421SA25PF8

Access Time	25 ns
Memory Depth	2 K
Memory Format	SRAM
Memory Interface (Type)	Parallel
Memory Size	2 KB
Memory Type	Volatile
Memory Width	8 bit
Mounting Type	Surface Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	0 °C
Package / Case	64-LQFP
Package Length	14 mm
Package Name	64-TQFP
Package Width	14 mm
Technology	SRAM - Dual Port, Asynchronous
Voltage - Supply (Maximum)	5.5 V
Voltage - Supply (Minimum)	4.5 V
Write Cycle Time - Page	25 ns
Write Cycle Time - Word	25 ns

71421 Series

Part	Memory Interface (Type)	Access Time	Memory Width	Memory Depth	Memory Format	Mounting Type	Technology	Memory Size	Package / Case	Memory Type	Write Cycle Time - Word	Write Cycle Time - Page	Package Width	Package Name	Package Length	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Operating Temperature (Min)	Operating Temperature (Max)
Renesas Electronics Corporation 71421LA35PF8	Parallel	35 ns	8 bit	2 K	SRAM	Surface Mount	Asynchronous SRAM - Dual Port	2 KB	64-LQFP	Volatile	35 ns	35 ns	14 mm	64-TQFP	14 mm	5.5 V	4.5 V	0 °C	70 °C
Renesas Electronics Corporation 71421SA55J	Parallel	55 ns	8 bit	2 K	SRAM	Surface Mount	Asynchronous SRAM - Dual Port	2 KB	52-LCC (J-Lead)	Volatile	55 ns	55 ns	19.13 mm	52-PLCC	19.13 mm	5.5 V	4.5 V	0 °C	70 °C
Renesas Electronics Corporation 71421SA20PF8	Parallel	20 ns	8 bit	2 K	SRAM	Surface Mount	Asynchronous SRAM - Dual Port	2 KB	64-LQFP	Volatile	20 ns	20 ns	14 mm	64-TQFP	14 mm	5.5 V	4.5 V	0 °C	70 °C
Renesas Electronics Corporation 71421LA25PFGI8	Parallel	25 ns	8 bit	2 K	SRAM	Surface Mount	Asynchronous SRAM - Dual Port	2 KB	64-LQFP	Volatile	25 ns	25 ns		64-TQFP		5.5 V	4.5 V	-40 °C	85 °C
Renesas Electronics Corporation 71421LA20PF8	Parallel	20 ns	8 bit	2 K	SRAM	Surface Mount	Asynchronous SRAM - Dual Port	2 KB	64-LQFP	Volatile	20 ns	20 ns	14 mm	64-TQFP	14 mm	5.5 V	4.5 V	0 °C	70 °C
Renesas Electronics Corporation 71421SA25J	Parallel	25 ns	8 bit	2 K	SRAM	Surface Mount	Asynchronous SRAM - Dual Port	2 KB	52-LCC (J-Lead)	Volatile	25 ns	25 ns	19.13 mm	52-PLCC	19.13 mm	5.5 V	4.5 V	0 °C	70 °C
Renesas Electronics Corporation 71421LA55J	Parallel	55 ns	8 bit	2 K	SRAM	Surface Mount	Asynchronous SRAM - Dual Port	2 KB	52-LCC (J-Lead)	Volatile	55 ns	55 ns	19.13 mm	52-PLCC	19.13 mm	5.5 V	4.5 V	0 °C	70 °C
Renesas Electronics Corporation 71421LA25PFGI	Parallel	25 ns	8 bit	2 K	SRAM	Surface Mount	Asynchronous SRAM - Dual Port	2 KB	64-LQFP	Volatile	25 ns	25 ns		64-TQFP		5.5 V	4.5 V	-40 °C	85 °C
Renesas Electronics Corporation 71421LA25PF8	Parallel	25 ns	8 bit	2 K	SRAM	Surface Mount	Asynchronous SRAM - Dual Port	2 KB	64-LQFP	Volatile	25 ns	25 ns	14 mm	64-TQFP	14 mm	5.5 V	4.5 V	0 °C	70 °C
Renesas Electronics Corporation 71421LA35PF	Parallel	35 ns	8 bit	2 K	SRAM	Surface Mount	Asynchronous SRAM - Dual Port	2 KB	64-LQFP	Volatile	35 ns	35 ns	14 mm	64-TQFP	14 mm	5.5 V	4.5 V	0 °C	70 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

71321/421 Datasheet

71421SA25PF8 | Datasheet
