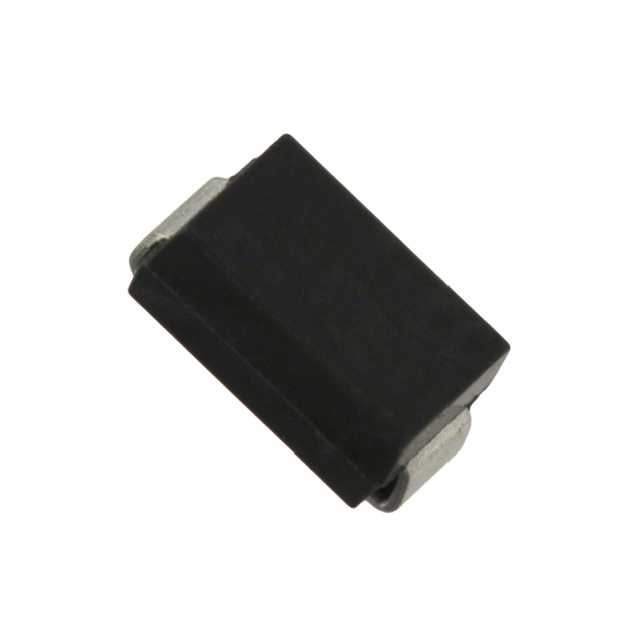

SMB10J10A

Active

Formosa Microsemi Co., Ltd.

TVS DIODE 10VWM 17VC DO214AA

Search across all available documentation for this part.

Active

Formosa Microsemi Co., Ltd.

TVS DIODE 10VWM 17VC DO214AA

Technical Specifications

Parameters and characteristics for this part

Specification	SMB10J10A

Applications	General Purpose
Current - Peak Pulse (10/1000µs)	58.8 A
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	SMB, DO-214AA
Power - Peak Pulse	1000 W
Power - Peak Pulse	1 kW
Power Line Protection	False
Supplier Device Package	SMB
Supplier Device Package	DO-214AA
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	11.1 V
Voltage - Clamping (Max) @ Ipp [Max]	17 V
Voltage - Reverse Standoff (Typ)	10 V

TVS DIODE 10VWM 17VC DO214AA

Part	Mounting Type	Current - Peak Pulse (10/1000µs)	Supplier Device Package	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Power Line Protection	Type	Package / Case	Power - Peak Pulse	Power - Peak Pulse	Voltage - Clamping (Max) @ Ipp [Max]	Unidirectional Channels [custom]	Voltage - Breakdown (Min) [Min]	Applications	Voltage - Reverse Standoff (Typ)
Formosa Microsemi Co., Ltd. SMB10J10A	Surface Mount	58.8 A	SMB	DO-214AA	-55 °C	175 ░C		Zener	DO-214AA, SMB	1000 W	1 kW	17 V	1	11.1 V	General Purpose	10 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

17V Clamp 58.8A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
