1514-Y
ActiveCurtis Industries

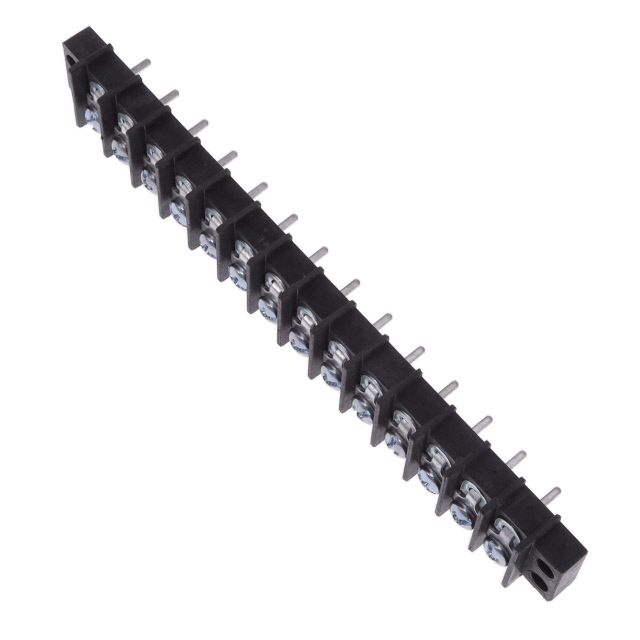

CONN BARRIER STRP 14CIRC 0.375"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1514-Y
ActiveCurtis Industries
CONN BARRIER STRP 14CIRC 0.375"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1514-Y | 1514 Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | PC Pin | PC Pin, Wire Wrap |
| Current Rating (Amps) | 20 A | 20 A |
| Features | Flange | Flange |
| Material - Insulation | Polyphenylene Oxide (PPO) | Polyphenylene Oxide (PPO) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Chassis, Panel, Through Hole | Chassis, Panel, Through Hole |
| Number of Circuits | 14 | 14 |
| Number of Rows | 2 | 2 |
| Number of Wire Entries | 28 | 28 |
| Operating Temperature | 110 °C | 110 °C |
| Pitch [x] | 9.53 mm | 9.53 mm |
| Pitch [x] | 0.375 in | 0.375 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws | Screws |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 10 AWG | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.12 | |
| 10 | $ 7.89 | |||
| 30 | $ 6.82 | |||
| 50 | $ 6.43 | |||
| 100 | $ 5.98 | |||
| 250 | $ 5.53 | |||
| 500 | $ 5.27 | |||
| 1000 | $ 5.07 | |||
1514 Series
CONN BARRIER STRP 14CIRC 0.375"
| Part | Number of Wire Entries | Features | Number of Rows | Operating Temperature | Material - Insulation | Wire Gauge [Max] | Wire Gauge [Min] | Number of Circuits | Terminal Block Type | Barrier Type | Material Flammability Rating | Terminal Screw Material | Top Termination | Mounting Type | Bottom Termination | Pitch [x] | Pitch [x] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 1514-Y | 28 | Flange | 2 | 110 °C | Polyphenylene Oxide (PPO) | 22 AWG | 10 AWG | 14 | Barrier Block | 2 Wall (Dual) | UL94 V-0 | Steel | Screws | Chassis, Panel, Through Hole | PC Pin | 9.53 mm | 0.375 in | 20 A |
Curtis Industries 1514-YWY | 28 | Flange | 2 | 110 °C | Polyphenylene Oxide (PPO) | 22 AWG | 10 AWG | 14 | Barrier Block | 2 Wall (Dual) | UL94 V-0 | Steel | Screws | Chassis, Panel, Through Hole | Wire Wrap | 9.53 mm | 0.375 in | 20 A |
Curtis Industries 1514-YSY | 28 | Flange | 2 | 110 °C | Polyphenylene Oxide (PPO) | 22 AWG | 10 AWG | 14 | Barrier Block | 2 Wall (Dual) | UL94 V-0 | Steel | Screws | Chassis, Panel, Through Hole | PC Pin | 9.53 mm | 0.375 in | 20 A |
Description
General part information
1514 Series
14 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
