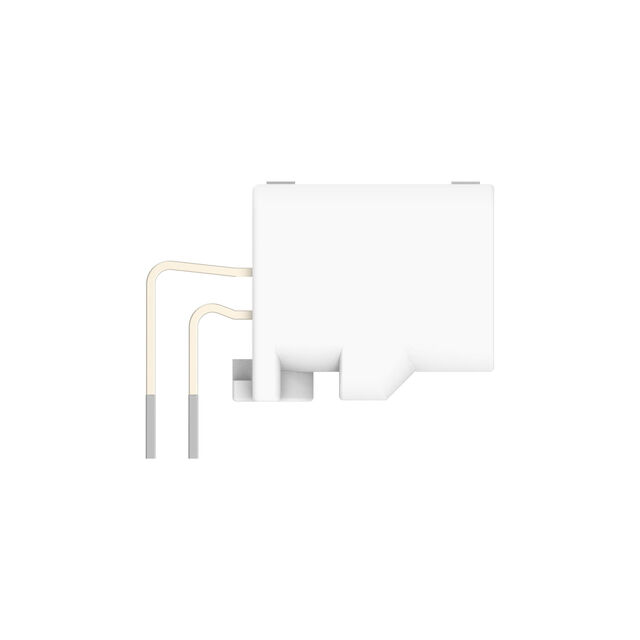

1318745-9
ActiveTE Connectivity AMP Connectors
025 32POS CAP ASSY H TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1318745-9
ActiveTE Connectivity AMP Connectors
025 32POS CAP ASSY H TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1318745-9 | 1318745 Series |
|---|---|---|
| - | - | |
| Applications | - | Automotive |
| Connector Type | Header | Header |
| Contact Finish - Mating | - | Gold |
| Contact Finish - Post | Tin | Tin, Tin-Lead |
| Contact Length - Mating | 0.217 in | 0.217 in |
| Contact Length - Mating | 5.5 mm | 5.5 mm |
| Contact Length - Post | 0.157 in | 0.157 in |
| Contact Length - Post | 4 mm | 4 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Latch Holder | Latch Holder |
| Features | - | Mounting Flange |
| Insulation Color | Natural | Natural, Black |
| Insulation Height | 0.61 in | 0.61 in |
| Insulation Height | 15.49 mm | 15.49 mm |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 | UL94 V-0, UL94 HB |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Pitch - Mating | 0.087 in | 0.087 in |
| Pitch - Mating | 2.2 mm | 2.2 mm |
| Row Spacing - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 0.118 in | 0.118 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 12 V | 12 V |
1318745 Series
025 32POS CAP ASSY H TIN
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Fastening Type | Number of Rows | Insulation Color | Voltage Rating | Number of Positions Loaded | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Contact Length - Mating | Contact Length - Mating | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Contact Type | Insulation Material | Shrouding | Insulation Height | Insulation Height | Termination | Style | Mounting Type | Contact Material | Row Spacing - Mating | Row Spacing - Mating | Contact Shape | Applications | Features | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1318745-9 | -30 ░C | 105 ░C | Header | Latch Holder | 2 | Natural | 12 V | All | Tin | 0.087 in | 2.2 mm | 0.217 in | 5.5 mm | 0.157 in | 4 mm | UL94 V-0 | Male Pin | Polybutylene Terephthalate (PBT), Glass Filled | Shrouded - 4 Wall | 0.61 in | 15.49 mm | Solder | Board to Cable/Wire | Through Hole, Right Angle | Brass | 3 mm | 0.118 in | Square | |||
TE Connectivity AMP Connectors 1318745-5 | -30 ░C | 105 ░C | Header | Latch Holder | 2 | Natural | 12 V | All | Tin | 0.087 in | 2.2 mm | 0.217 in | 5.5 mm | 0.157 in | 4 mm | Male Pin | Shrouded - 4 Wall | 0.61 in | 15.49 mm | Solder | Board to Cable/Wire | Through Hole, Right Angle | Brass | 3 mm | 0.118 in | Square | Automotive | Mounting Flange | |||
TE Connectivity AMP Connectors 1318745-8 | |||||||||||||||||||||||||||||||
TE Connectivity AMP Connectors 1318745-6 | -30 ░C | 105 ░C | Header | Latch Holder | 2 | Black | 12 V | All | Tin-Lead | 0.087 in | 2.2 mm | 0.217 in | 5.5 mm | 0.157 in | 4 mm | UL94 HB | Male Pin | Polybutylene Terephthalate (PBT), Glass Filled | Shrouded - 4 Wall | 0.61 in | 15.49 mm | Solder | Board to Cable/Wire | Through Hole, Right Angle | Brass | 3 mm | 0.118 in | Square | Automotive | Mounting Flange | Gold |
TE Connectivity AMP Connectors 1318745-1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.57 | |
| 11 | $ 2.23 | |||
| 33 | $ 2.14 | |||
| 55 | $ 2.09 | |||
| 110 | $ 2.00 | |||
| 253 | $ 1.81 | |||
| 506 | $ 1.66 | |||
| 1001 | $ 1.43 | |||
| 2508 | $ 1.33 | |||
Description
General part information
1318745 Series
Connector Header Through Hole, Right Angle 32 position 0.087" (2.20mm)
