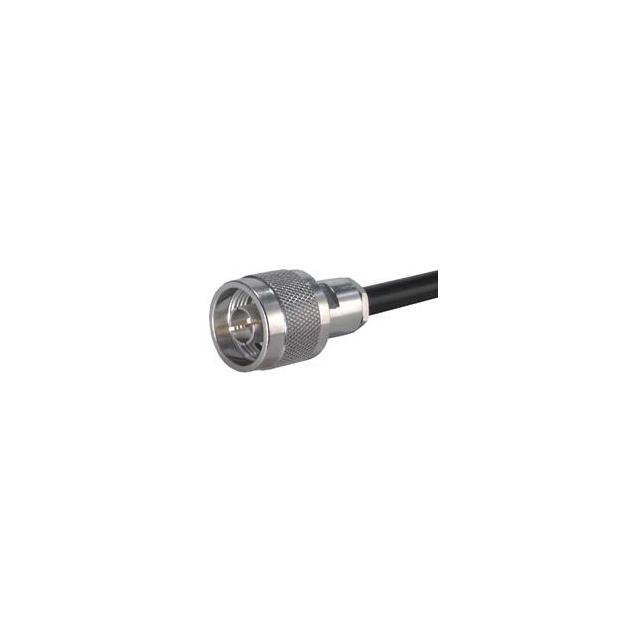

11_N-75-4-3/133_NE
ActiveHuber+Suhner, Inc.
11_N-75-4-3/133_NE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
11_N-75-4-3/133_NE
ActiveHuber+Suhner, Inc.
11_N-75-4-3/133_NE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 11_N-75-4-3/133_NE | 11_N-75 Series |
|---|---|---|
| Body Finish | White Bronze | White Bronze |
| Body Material | Brass | Brass |
| Cable Group | RG-59 | RG-59 |
| Center Contact Material | Brass | Brass |
| Center Contact Plating | Gold | Gold |
| Connector Style | N Type | N Type |
| Connector Type | Male Pin, Plug | Male Pin, Plug |
| Contact Termination | Solder | Solder, Crimp |
| Dielectric Material | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 1.5 GHz | 1.5 GHz |
| Housing Color | Silver | Silver |
| Impedance | 75 Ohms | 75 Ohms |
| Mating Cycles | 500 | 500 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 165 °C | 165 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Shield Termination | Clamp | Clamp, Crimp |
| Voltage Rating | 1000 VDC | 1000 VDC |
11_N-75 Series
11_N-75-4-3/133_NE
| Part | Dielectric Material | Connector Style | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Max [Max] | Contact Termination | Body Material | Mating Cycles | Connector Type | Cable Group | Number of Ports | Mounting Type | Body Finish | Housing Color | Impedance | Shield Termination | Voltage Rating | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Huber+Suhner, Inc. 11_N-75-4-3/133_NE | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) | N Type | Gold | -65 ░C | 165 °C | 1.5 GHz | Solder | Brass | 500 | Male Pin, Plug | RG-59 | 1 | Free Hanging (In-Line) | White Bronze | Silver | 75 Ohms | Clamp | 1000 VDC | Brass |
Huber+Suhner, Inc. 11_N-75-4-6/133_NE | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) | N Type | Gold | -65 ░C | 165 °C | 1.5 GHz | Solder | Brass | 500 | Male Pin, Plug | RG-59 | 1 | Free Hanging (In-Line) | White Bronze | Silver | 75 Ohms | Clamp | 1000 VDC | Brass |
Huber+Suhner, Inc. 11_N-75-4-9/133_NE | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) | N Type | Gold | -65 ░C | 165 °C | 1.5 GHz | Crimp | Brass | 500 | Male Pin, Plug | 1 | Free Hanging (In-Line) | White Bronze | Silver | 75 Ohms | Crimp | 1000 VDC | Brass | |
Huber+Suhner, Inc. 11_N-75-4-8/133_NE | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) | N Type | Gold | -65 ░C | 165 °C | 1.5 GHz | Crimp | Brass | 500 | Male Pin, Plug | RG-59 | 1 | Free Hanging (In-Line) | White Bronze | Silver | 75 Ohms | Crimp | 1000 VDC | Brass |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 26.43 | |
Description
General part information
11_N-75 Series
N Type Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Solder
